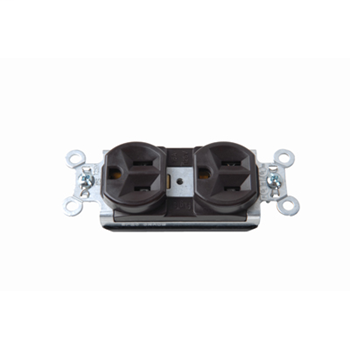

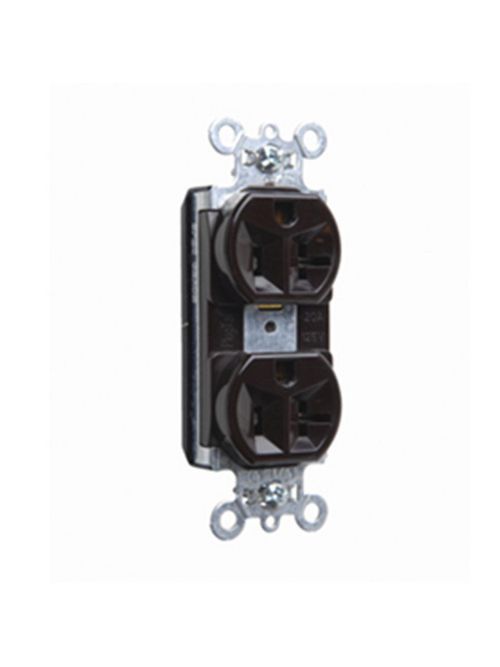

P&S PT5362-BL 20A/125V DUP RECEPT
$9.04/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PT5362-BL
North Coast Part # 931833

Features

  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Crimped and welded contacts.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Blue
  • Product Series: PlugTail
  • Type: Receptacles
  • Duty: Extra Heavy Duty
  • Special Features: split circuit

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CUL Listing No: E140596
  • cULus: Yes
  • cUL Standard: UL498
  • Federal Spec: Yes
  • UL Listing No: E140596
  • UL Standard: UL498
  • UN SPSC: 39121406

Dimensions

  • Depth (US): .625"
  • Height (US): 3.281"
  • Width (US): 1.5"

Technical Information

  • Amps: 20A
  • NEMA Configuration Number: 5-20R
  • NEMA Rating: Yes
  • Volts: 125V
  • Volts (AC): 125
  • Capacity: Duplex
  • Grade Type: Federal Specification

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Video

Overview

UPC 78500709167
Width 1.5 in
Color Blue
Voltage 125 Volt
Type Duplex, Specification Grade
Material Nylon Face, PVC Body
Conductor Size 12 AWG
Product Series PlugTail
Mounting Type Wall
Depth .625 in
Height 3.281 in
Grade Federal Specification
Country of Origin Mexico
Capacity Duplex
Temperature Rating 60 C Maximum Continuous, -40 C Minimum without Impact
Family Brand Name Pass & Seymour
NEMA 5-20R
Certifications CULUS,FEDSPEC
Grounding Grounding
Contact Material 0.036 in T Brass
Duty Rating Extra Heavy Duty
Amperage 20 Amp
Dielectric Strength 2000 V
Blade Dimensions 1-1/2 in W x 5/8 in D x 3.281 in H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand adorne
