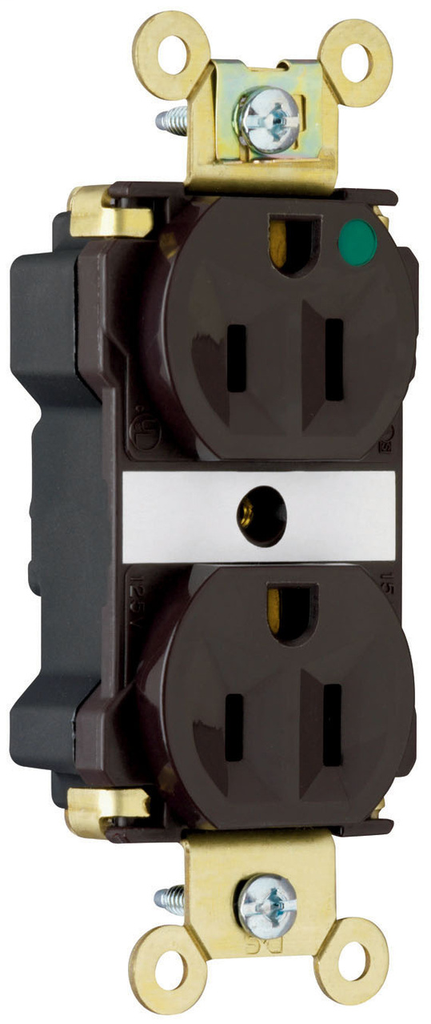

P&S PT8200LA HOSP GRADE EHD DUP REC
Product image thumbnail 0
Product image thumbnail 1
$22.74/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PT8200LA
North Coast Part # 931861

Features

  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Phase: 3
  • Country Of Origin: US
  • Amperage: 15 A
  • Certifications: CULUS,FEDSPEC
  • Standard: UL 498
  • NEMA Rating: 5-15R
  • Product Line: Pass & Seymour
  • Voltage: 125.0 V
  • Wire Size: 10-14Awg
  • Number of Wires: 3.0
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Special Features: Plated steel wrap, no exposed terminals, built in connector, crimped & welded contacts

Certifications

  • cULus Listed: 140596
  • Federal Spec Listed

Overview

UPC 78500709107
GTiN 00785007091076
Width 1.625 in
Size 4.4x1.9x1.3
Color Light Almond
Voltage 125 Volt
Type Receptacles
Material Thermoplastic
Product Series PlugTail
Applications Commercial
Depth .866 in
Height 3.281 in
Grade Hospital
Country of Origin USA
Wire Size 10-14 Awg
Capacity Duplex
Family Brand Name Pass & Seymour
NEMA 5-15R
Certifications CULUS,FEDSPEC
Duty Rating Extra Heavy Duty
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3.0
UNSPSC 39121406
Sub Brand Pass & Seymour
Number of Phases 3 Phase
