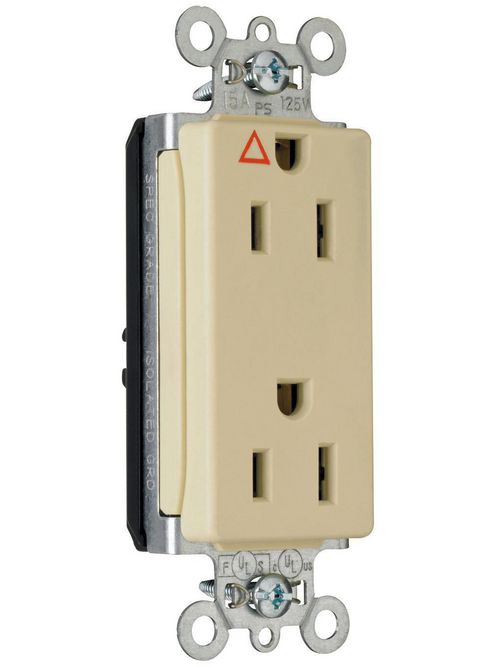

P&S PTIG26262 PT IG DUP DECO 15A/12
$30.19/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PTIG26262
North Coast Part # 931782

Features

  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Orange
  • Product Series: PlugTail
  • Type: Receptacles
  • Number Of Poles: 2
  • Number Of Wires: 3
  • Special Features: split circuit
  • Style: Decorator

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CUL Listing No: E140596
  • cULus: Yes
  • cUL Standard: UL498
  • Federal Spec: Yes
  • UL Listing No: E140596
  • UL Standard: UL498
  • UN SPSC: 39121406

Dimensions

  • Depth (US): .625"
  • Height (US): 3.281"
  • Width (US): 1.5"

Technical Information

  • Amps: 15A
  • NEMA Configuration Number: 5-15R
  • NEMA Rating: Yes
  • Volts: 125V
  • Volts (AC): 125
  • Capacity: Duplex
  • Grade Type: Federal Specification

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Video

Overview

UPC 78500730773
GTiN 00785007307733
Width 1.5 in
Size 5.05x2.08x1.43
Color Orange
Voltage 125 Volt
Type Receptacles
Material Thermoplastic
Product Series PlugTail
Applications Commercial
Depth .625 in
Height 3.281 in
Grade Federal Specification
Country of Origin Mexico
Style Decorator
Wire Size 10-14 Awg
Capacity Duplex
Family Brand Name Pass & Seymour
NEMA 5-15R
Certifications CULUS,FEDSPEC
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
