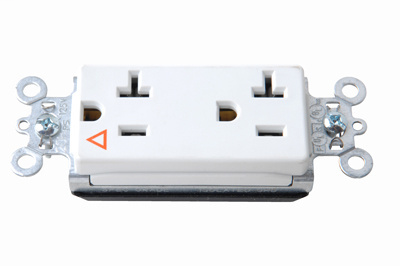

PT IG DUP DECO 20A/125V WH

Features

• .036 inch thick, brass, triple-wipe power contacts for lasting retention.
• Plated steel wrap strap design for maximum durability and corrosion resistance.
• No exposed terminals create a finger safe application before, during, and after installation.
• Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
• Crimped and welded contacts.
• Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
• Large brass contacts snugly terminate on device blade terminals.
• Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
• Auto-ground clip assures positive ground.
• For covering patents, see www.legrand.us/patents.
• For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

• Phase: 3
• Country Of Origin: MX
• Amperage: 20 A
• Certifications: CULUS,FEDSPEC
• Color: White
• Standard: UL 498
• Product Line: Pass & Seymour
• NEMA Rating: 5-20R
• Voltage: 125.0 V
• Wire Size: 10-14Awg
• Number of Wires: 3.0
• Application Sector: Commercial
• Number of Poles: Double Pole
• Special Features: Plated steel wrap, no exposed terminals, built in connector, crimped & welded contacts

Certifications

• Federal Spec Listed
• cULus Listed: 140596
