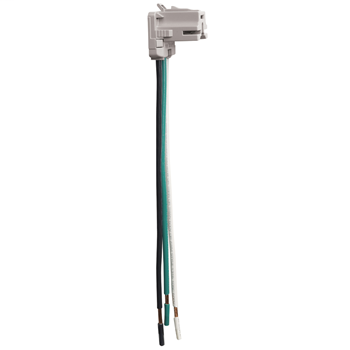

P&S PTRA6STRNA 6IN STRANDED PLUGTAI
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$5.75/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PTRA6STRNA
North Coast Part # 1006152

Features

  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Available in any wire length up to 25 inches, use Configurable Solutions to order.
  • NAFTA-Compliant
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Wire Size: PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6" leads, stripped, stranded, for use with PlugTail Receptacles only
  • Country Of Origin: MX
  • Certifications: CULUS
  • Special Features: NAFTA-Compliant PlugTail Connectors are ideal for use on projects subject to the provisions of the Buy American Act. Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing. Large brass contacts snugly terminate on device blade terminals. Pre-stripped connector leads fasten to conductors, easier than standard pigtails. Exclusive patented feature, circuit label on back allows permanent circuit identification.
  • Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Number of Wires: 3.0
  • Product Line: Pass & Seymour
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Standard: cULus UL498, NAFTA-Compliant
  • Environmental Conditions: Flammability: UL94 V2
  • Dielectric Strength: Withstands 2000V minimum

Certifications

  • cULus Listed

Overview

UPC 78500700829
Item Long Description NAFTA-Compliant PlugTail Connectors Right Angle Stranded 6""For detailed PlugTail information, visit our PlugTail Headquarters.
GTiN 00785007008296
Length 6 in
Size 7.5 In
Color Gray
Type Connectors
Material Polycarbonate
Product Series PlugTail
Applications Commercial
Country of Origin Mexico
Wire Size 12 AWG
Family Brand Name Pass & Seymour
Certifications CULUS
Dielectric Strength Withstands 2000V minimum
Number of Poles 2 Pole
Number of Wires 3.0
UNSPSC 39121406
Sub Brand Pass & Seymour
