P&S PTTR5262I DUP RECEP TR 15A 125V

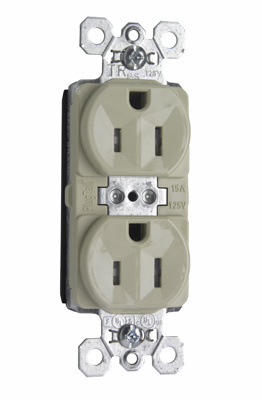

Product image thumbnail 0

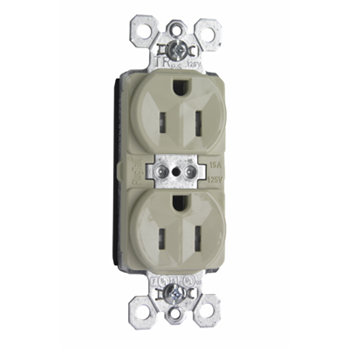

Product image thumbnail 1
$14.35/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PTTR5262I
North Coast Part # 669843

Features

  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Crimped and welded contacts.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Certifications: FEDSPEC,CULUS
  • Color: Ivory
  • Country Of Origin: MX
  • Product Line: Pass & Seymour
  • Phase: 3
  • Amperage: 15 A
  • Standard: UL 498
  • NEMA Rating: 5-15R
  • Voltage: 125.0 V
  • Wire Size: 10-14Awg
  • Number of Wires: 3.0
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Special Features: Dual mechanical shutter system, plated steel wrap, built in connector, crimped & welded contacts

Certifications

  • Federal Spec Listed
  • cULus Listed

Overview

GTiN 00785007001365
Width 1.5 in
Size 5x2x1.43
Color Ivory
Voltage 125 Volt
Type Receptacles
Material Thermoplastic
Product Series PlugTail
Applications Commercial
Depth .625 in
Height 3.281 in
Grade Specification
Country of Origin Mexico
Wire Size 10-14 Awg
Capacity Duplex
Family Brand Name Pass & Seymour
NEMA 5-15R
Certifications CULUS,FEDSPEC
Duty Rating Extra Heavy Duty
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3.0
UNSPSC 39121406
Sub Brand Pass & Seymour
Product UPC 78500700136
Number of Phases 3 Phase
