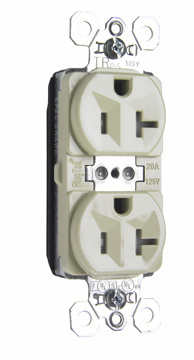

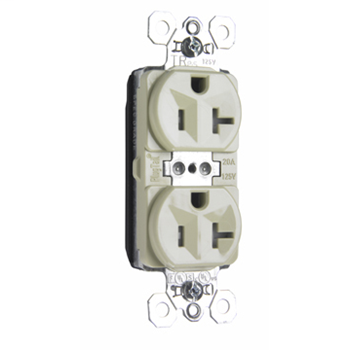

P&S PTTR5362I DUP RECEP TR 20A 125V
Product image thumbnail 0
Product image thumbnail 1
$19.22/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PTTR5362I
North Coast Part # 669889

Features

  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Crimped and welded contacts.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Wire Size: PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
  • Country Of Origin: MX
  • Certifications: CULUS,FEDSPEC
  • Special Features: Dual mechanical shutter system to help prevent insertion of foreign objects. Plated steel wrap strap design for maximum durability and corrosion resistance. .036 inch thick, brass, triple-wipe power contacts for lasting retention. Three drive screws anchor strap to back body and face. No exposed terminals create a finger safe application before, during, and after installation. Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections. Crimped and welded contacts. Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing. Large brass contacts snugly terminate on device blade terminals. Pre-stripped connector leads fasten to conductors, easier than standard pigtails. Exclusive patented feature, circuit label on back allows permanent circuit identification. Auto-ground clip assures positive ground.
  • Color: Ivory
  • Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Amperage: 20 A
  • Product Line: Pass & Seymour
  • NEMA Rating: 5-20R
  • Voltage: 125.0 V
  • Standard: cULus UL498
  • Number of Wires: 3.0
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Environmental Conditions: Flammability: UL94 V2
  • Dielectric Strength: Withstands 2000V minimum

Certifications

  • Federal Spec Listed
  • cULus Listed

Overview

UPC 78500700172
GTiN 00785007001723
Width 1.5 in
Size 1.5 L x .625 W x 3.281 H In
Color Ivory
Voltage 125 Volt
Type Receptacles
Material Nylon
Product Series PlugTail
Applications Commercial
Depth .625 in
Height 3.281 in
Grade Specification
Country of Origin Mexico
Wire Size 12 AWG
Capacity Duplex
Family Brand Name Pass & Seymour
NEMA 5-20R
Certifications CULUS,FEDSPEC
Duty Rating Extra Heavy Duty
Amperage 20 Amp
Dielectric Strength Withstands 2000V minimum
Number of Poles 2 Pole
Number of Wires 3.0
UNSPSC 39121406
Sub Brand Pass & Seymour
