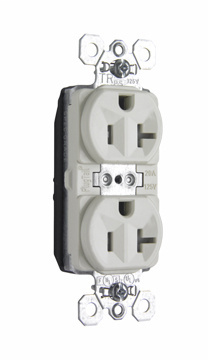

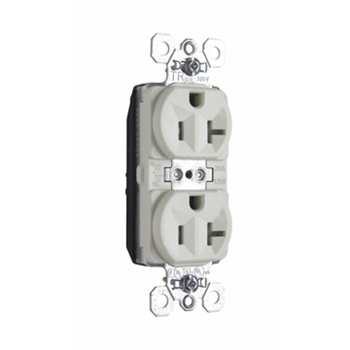

P&S PTTR5362LA DUP RECEP TR 20A 125
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$15.64/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # PTTR5362LA
North Coast Part # 821598

Features

  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Crimped and welded contacts.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Phase: 3
  • Country Of Origin: MX
  • Certifications: CULUS,FEDSPEC
  • Amperage: 20 A
  • Standard: UL 498
  • NEMA Rating: 5-20R
  • Product Line: Pass & Seymour
  • Voltage: 125.0 V
  • Wire Size: 10-14Awg
  • Number of Wires: 3.0
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Special Features: Dual mechanical shutter system, plated steel wrap, built in connector, crimped & welded contacts

Certifications

  • cULus Listed
  • Federal Spec Listed

Overview

UPC 78500700167
Item Long Description PlugTail Tamper-Resistant Spec Grade Duplex Receptacle 20amp 125volt, BrownFor detailed PlugTail information, visit our PlugTail Headquarters.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
GTiN 00785007001679
Width 1.5 in
Size 5x2x1.43
Color Light Almond
Voltage 125 Volt
Type Receptacles
Material Thermoplastic
Product Series PlugTail
Applications commercial
Depth .625 in
Height 3.281 in
Grade Specification
Country of Origin Mexico
Wire Size 10-14 Awg
Capacity Duplex
Family Brand Name Pass & Seymour
NEMA 5-20R
Duty Rating Extra Heavy Duty
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3.0
UNSPSC 39121406
Sub Brand Pass & Seymour
Number of Phases 3 Phase
Certifications CULUS,FEDSPEC
