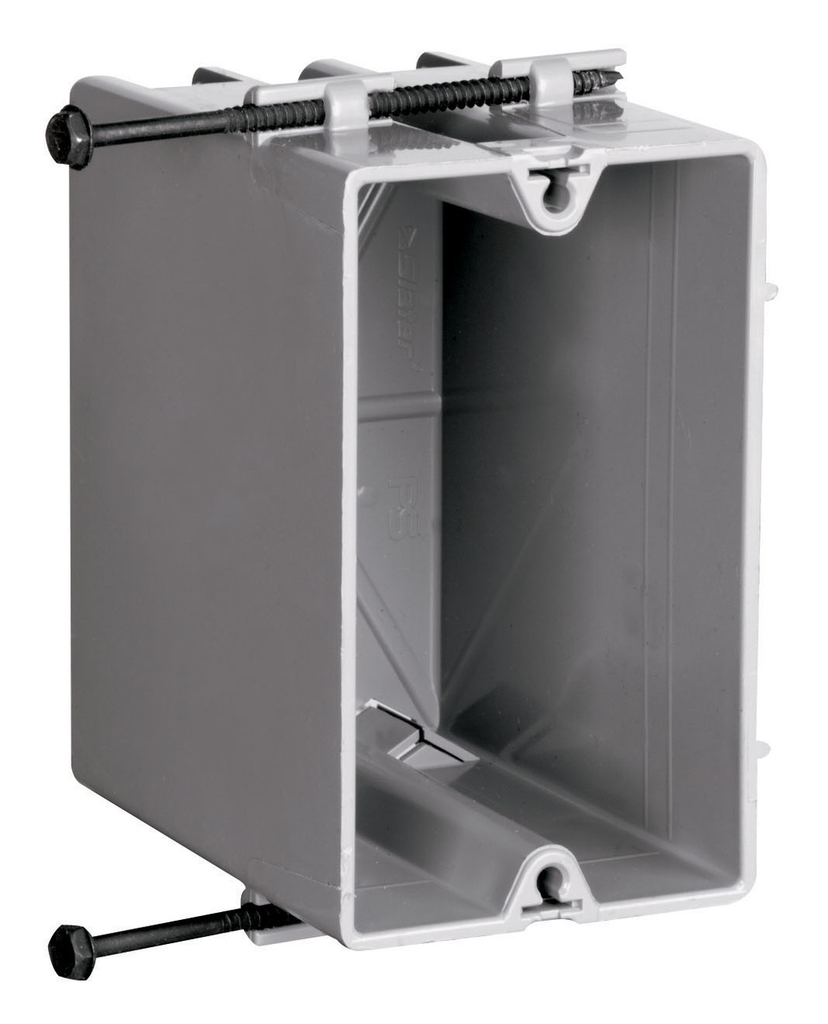

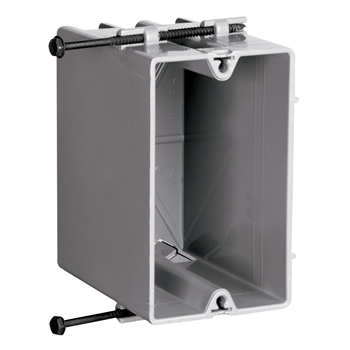

Pass & Seymour S1-22-RS 2-1/4 x 3-3/8 x 3-3/4 Inch 22.5cu.in Molded Thermoplastic 1-Gang Stud Outlet Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$515.74/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # S122RS
North Coast Part # 71292

Features

  • Quick/Entry feature speeds installation by eliminating need for tools, allows you to push stripped or unstripped non-metallic cable into a single gang plastic box without removing knockouts.
  • Specially designed drill point rapidly penetrates medium gauge steel studs.
  • Screws have combination Hex/Phillips washer heads.
  • Quick/Click feature on wall boxes offers fast and dependable installation of devices.
  • Can be used for steel, aluminum, or wood studs.
  • Molded of high-impact thermoplastic.
  • Locator ribs ensure proper alignment on stud and proper offset depth.

Specifications

  • Country Of Origin: US
  • Number of Outlets: 1.0
  • Cubic Capacity: 22.5 cu in
  • Certifications: UL
  • Standard: Residential/Commercial
  • Color: Gray
  • Product Line: Pass & Seymour
  • Special Features: Captive mounting nails, auto/clamps, threaded mounting holes

Certifications

  • UL Listed: 143222

Overview

UPC 78500765175
Item Long Description Deep Single-Gang Switch and Outlet Box with Quick/Click and captive combo-head self-tapping mounting screws on each end. Two Quick/Entries on each end. Extra deep for dimmers, GFCIs, and thermostats, yet suitable for 2 x 4 construction. Easy to install and constructed of durable, impact-resistant thermoplastic. 100 pack.
GTiN 00785007651751
Width 2.25 in
Size Deep
Color Gray
Type Steel Stud Box
Material Steel
Product Series Slater
Applications UL Listed
Mounting Type Captive Mounting Screws
Depth 3.375 in
Height 3.75 in
Country of Origin USA
Family Brand Name Pass & Seymour
NEMA OS2
Certifications UL
Buy American Compliant Yes
UNSPSC 39121308
Sub Brand Pass & Seymour
Number of Outlets 1.0
