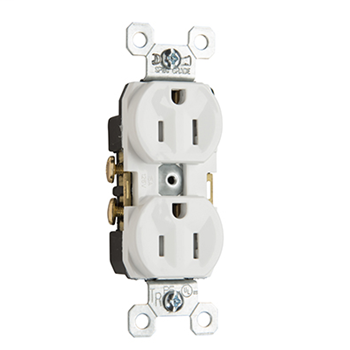

Pass & Seymour TR15LA 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Light Almond Nylon Tamper-Resistant Duplex Receptacle
$7.11/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # TR15LA
North Coast Part # 491198

Features

  • Dual mechanical shutter system to help prevent insertions of foreign objects.
  • High Impact resistant nylon face.
  • Auto-ground clip assures positive ground.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
  • Backed-out tri-drive steel terminal screws. Side wire only.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Light Almond
  • Type: Receptacles
  • Features: Tamper-Resistant
  • Number Of Poles: 2
  • Number Of Wires: 3
  • Special Features: Side Wire Only,Tamper-Resistant
  • Style: Duplex

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No. 42
  • CSA Standard: Yes
  • cULus: Yes
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121406

Dimensions

  • Depth (US): .65"
  • Height (US): 3.28"
  • Width (US): 1.32"

Technical Information

  • Amps: 15A
  • NEMA Configuration Number: 5-15R
  • Volts: 125V
  • Volts (AC): 125
  • Capacity: Duplex
  • Grade Type: Commercial

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Video

Overview

UPC 78500724169
GTiN 00785007241693
Width 1.32 in
Size 1.322 L x 1.130 W x 3.281 H In
Color Light Almond
Voltage 125 Volt
Type Receptacles
Material Nylon
Applications Commercial
Depth .65 in
Height 3.28 in
Grade Commercial
Country of Origin Mexico
Style Duplex
Wire Size 14-10 AWG
Capacity Duplex
Family Brand Name Pass & Seymour
NEMA 5-15R
Certifications CULUS
TC Connection Side wire
Amperage 15 Amp
Dielectric Strength Withstands 1500V minimum
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
