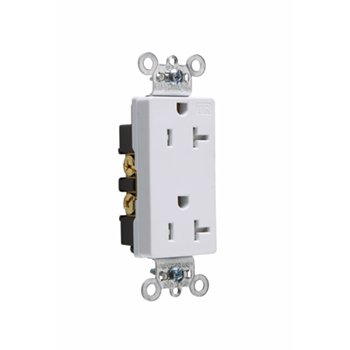

Pass & Seymour TR26362-W 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White Nylon Tamper-Resistant Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
$19.32/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # TR26362W
North Coast Part # 548540

Features

  • Dual mechanical shutter system to help prevent insertion of foreign objects.
  • Auto-ground clip assures positive ground.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
  • Backed-out tri-drive brass terminal screws for faster installation.
  • Internal screw-pressure-plate back and side wire capability.
  • Two back wire holes for additional wiring flexibility.
  • Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
  • .032 inch thick brass triple-wipe power contacts.
  • Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Country Of Origin: MX
  • Special Features: Dual mechanical shutter system to help prevent insertion of foreign objects. Auto-ground clip assures positive ground. One-piece, brass, triple-wipe power contacts for lasting retention. Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest. Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring. External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection. One-piece plated steel mounting strap with integral ground for superior long-term performance.
  • Certifications: CULUS
  • Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Color: White
  • Amperage: 20 A
  • NEMA Rating: 5-20R
  • Product Line: Pass & Seymour
  • Voltage: 125.0 V
  • Standard: UL498, cUL CSA
  • Number of Wires: 3.0
  • Wire Size: #14 - #10
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Connection: Back and side wire
  • Environmental Conditions: Flammability: UL94 V2
  • Dielectric Strength: Withstands 2000V minimum

Certifications

  • cULus Listed: 140596

Overview

UPC 78500727734
GTiN 00785007277340
Finish Untreated, Gloss
Width 1.322 in
Size 1.322 L x .833 W x 3.813 H In
Color White
Voltage 125 Volt
Type Tamper-Resistant Decorator, Heavy Duty
Material Nylon
Conductor Size 14-10 AWG
Applications Commercial Grade
Mounting Type Wall, Flush
Depth 0.833 in
Height 3.281 in
Grade Specification
Country of Origin Mexico
Style Decorator
Wire Size 14-10 AWG
Capacity Duplex
Connection Type Back and Side Wire
Temperature Rating -40 to 60 C
Family Brand Name Pass & Seymour
Certifications CULUS
TC Connection Back and side wire
Duty Rating Heavy Duty
Amperage 20 Amp
Dielectric Strength 2000 V
Blade Dimensions 33.58 mm W x 28.7 mm D x 83.34 mm H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
NEMA 5-20R
