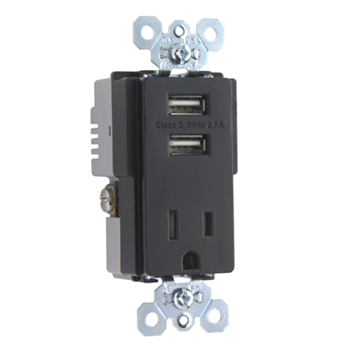

P&S TR5261USB 15A TR SPEC GRADE W/

$38.78/ea

Usually ships within 11 to 17 Days

Adding...

Already a Customer? Log in to view your pricing

Features

2.1 A USB type A receptacle charges faster than other USB receptacles eliminates the need for bulky AC adapters.
Compact Design Tamper-Resistant receptacle and two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.
Back and side wire terminals accommodates #14 AWG - #10 AWG stranded and solid wire.
Tamper-Resistant, patented shutter system prevents improper insertion of foreign objects. Meets 2011 National Electrical Code® Tamper-Resistant requirements.
Stainless steel auto-ground clip assures positive ground.
Zinc-plated ground terminal screw
For covering patents, see www.legrand.us/patents.

UPC	78500702911
GTiN	00785007029116
Width	1.60 in
Size	1.31" (D) x 1.60" (W) x 4.18" (H)
Color	Brown
Type	Tamper-Resistant USB Single Receptacle
Material	Thermoplastic
Applications	Commercial
Depth	1.31 in
Height	4.18 in
Country of Origin	China
Style	Decorator
Wire Size	14-10 AWG
Temperature Rating	Maximum continuous +60C, minimum -40 without impact
Family Brand Name	Pass & Seymour
Buy American Compliant	No
TC Connection	Side & Back Wired
Amperage	15 Amp
Dielectric Strength	Withstands 2000V minimum
Number of Poles	2 Pole
Number of Wires	3
Sub Brand	Pass & Seymour
Voltage	null
