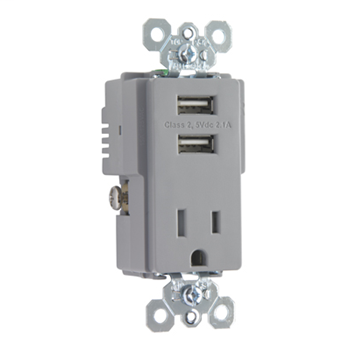

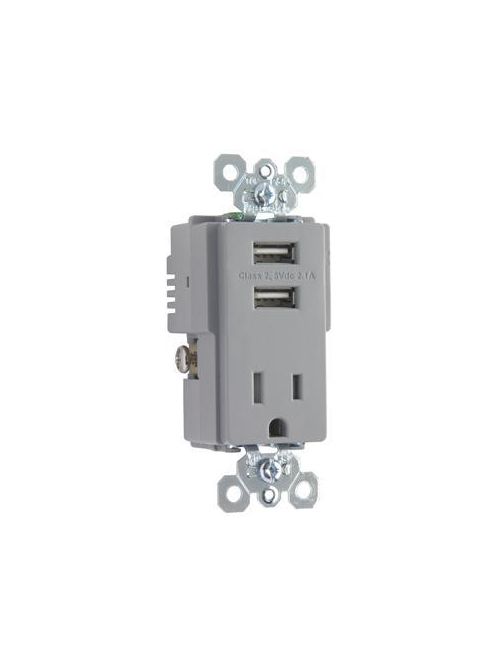

P&S TR5261USB-GRY 15A TR SPEC GRADE
$38.78/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # TR5261USBGRY
North Coast Part # 1098412

Features

  • 2.1 A USB type A receptacle charges faster than other USB receptacles eliminates the need for bulky AC adapters.
  • Compact Design Tamper-Resistant receptacle and two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.
  • Back and side wire terminals accommodates #14 AWG - #10 AWG stranded and solid wire.
  • Tamper-Resistant, patented shutter system prevents improper insertion of foreign objects. Meets 2011 National Electrical CodeĀ® Tamper-Resistant requirements.
  • Stainless steel auto-ground clip assures positive ground.
  • Zinc-plated ground terminal screw
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info

  • Color: Gray
  • Style: Decorator

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No.42 & No. 223
  • CSA Standard: Yes
  • ETL Listing No: 4001804
  • ETL Listed: Yes
  • Federal Spec: Yes
  • UL Listing No: Complies with test requirements UL498, UL1310
  • UL Standard: Yes

Dimensions

  • Depth (US): 1.31"
  • Height (US): 4.18"
  • Width (US): 1.60"

Technical Information

  • Amps: 15A

Buy American Act Compliance

  • Country Of Origin: CHINA
  • Buy American Act Status: No

Eco-Benefit Information

  • RoHS Compliant

Video

Overview

UPC 78500702905
GTiN 00785007029055
Width 1.60 in
Size 1.31" (D) x 1.60" (W) x 4.18" (H)
Color Gray
Type Tamper-Resistant USB Single Receptacle
Material Thermoplastic
Applications Commercial
Depth 1.31 in
Height 4.18 in
Country of Origin China
Style Decorator
Wire Size 14-10 AWG
Temperature Rating Maximum continuous +60C, minimum -40 without impact
Family Brand Name Pass & Seymour
Buy American Compliant No
TC Connection Side & Back Wired
Amperage 15 Amp
Dielectric Strength Withstands 2000V minimum
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Pass & Seymour
Voltage null
