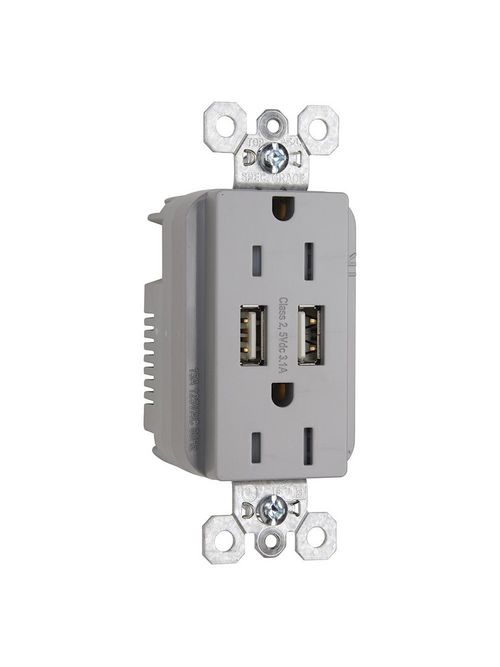

Pass & Seymour TR-5262USBGRY Fed Spec Grade USB Charger with Tamper Resistant Gray 15 Amp Duplex Receptacles
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # TR5262USBGRY
North Coast Part # 1097719


  • Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.
  • AC receptacles available in 15 and 20A, 125V.
  • AC receptacles are tamper-resistant as standard: patented shutter system prevents improper insertion of foreign objects.
  • Multiple color options available.
  • Back and side wire terminals accommodate #14 AWG - #10 AWG stranded and solid copper wire.
  • Stainless steel auto-ground clips assure positive ground.
  • For covering patents, see


  • Country Of Origin: CN
  • Special Features: Designed for commercial markets with strength and durability in mind, this combination USB charger duplex receptacle features 3.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices.
  • Certifications: CULUS,FEDSPEC
  • Amperage: 15 A
  • Phase: Single
  • Color: Gray
  • NEMA Rating: 5-15R
  • Product Line: Pass & Seymour
  • Voltage: 125.0 V
  • Number of Wires: 3.0
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Environmental Conditions: UL94 V2
  • Connection: Side & Back Wired
  • Dielectric Strength: Withstands 2000V minimum
  • Wire Size: #14 -#10 AWG Copper Conductor Only
  • Standard: CSA Listed, cULus, FSUL, UL Listed, RoHS
  • Temperature Rating: Maximum continuous +60°C, minimum -40° without impact


  • cULus Listed
  • Federal Spec Listed


UPC 78500703163
GTiN 00785007031638
Width 1.693 in
Size 1.392" (D) x 1.693" (W) x 3.281" (H)
Color Gray
Voltage 125 Volt
Type Tamper-Resistant USB Duplex Receptacle
Material Thermoplastic
Applications Commercial
Depth 1.392 in
Height 3.28 in
Country of Origin China
Style Decorator
Wire Size 14-10 AWG
Temperature Rating Maximum continuous +60C, minimum -40 without impact
Family Brand Name Pass & Seymour
NEMA 5-15R
Certifications CULUS,FEDSPEC
TC Connection Side & Back Wired
Amperage 15 Amp
Dielectric Strength Withstands 2000V minimum
Number of Poles 2 Pole
Number of Wires 3.0
Sub Brand Pass & Seymour
Number of Phases 1 Phase
