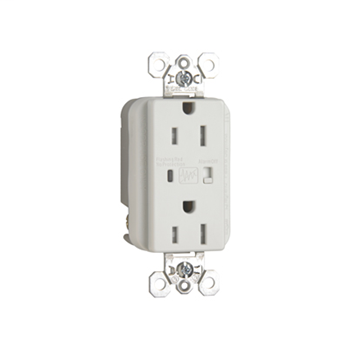

Pass & Seymour TR5262WSP Tamper Resistant Extra Heavy Duty Surge Protective White Duplex Receptacle
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # TR5262WSP
North Coast Part # 827423


  • Dual mechanical shutter system to help prevent insertions of foreign objects.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
  • .032 inch thick brass triple-wipe power contacts for lasting retention.
  • Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly.
  • Auto-ground clip assures positive ground.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuitwiring.
  • Backed-out tri-drive steel terminal screws. Side wire capability.
  • For covering patents, see
  • For more information on Surge Protective Devices, please visit


General Info

  • Color: White
  • Type: Duplex
  • Duty: Extra Heavy Duty
  • Special Features: Tamper-Resistant, Isolated Ground, Audible Alarm with LED Monitor

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: No
  • CUL Listing No: No
  • cULus: Yes
  • cURus: No
  • Federal Spec: Yes
  • UL Listing No: No
  • UN SPSC: 39121406
  • UR: No


  • Depth (US): 1.225" (Behind Strap)
  • Height (US): 3.82"
  • Width (US): 1.750"

Technical Information

  • Amps: 15A
  • Volts: 125V
  • Volts (AC): 125
  • Grade Type: Specification

Buy American Act Compliance

  • Country Of Origin: CHINA
  • Buy American Act Status: No

Eco-Benefit Information

  • RoHS Compliant



UPC 78500701926
GTiN 00785007019261
Width 1.750 in
Size 1-3/4 in W x 0.94 in D x 3.82 in H
Color White
Operating Temperature -20C to 55C (-4 to 131F
Voltage 125 Volt
Type Tamper-Resistant, Extra Heavy Duty
Material Thermoplastic
Applications For Residential, Commercial Use
Depth 1.225 in
Height 3.82 in
Grade Specification
Country of Origin China
Family Brand Name Pass & Seymour
Certifications CULUS
Buy American Compliant No
TC Connection Side & Back Wire
Duty Rating Extra Heavy Duty
Amperage 15 Amp
UNSPSC 39121406
Sub Brand Pass & Seymour
Mounting Type Box
Temperature Rating -20 to 55 C
