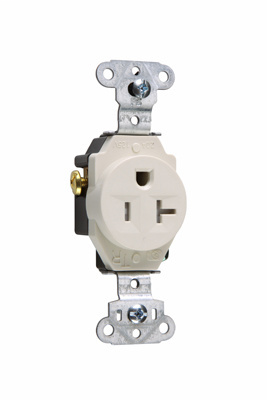

Pass & Seymour TR5351-LA 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Light Almond Nylon Face Tamper-Resistant Single Receptacle

$19.70/ea

In Stock | 184 available at 10 locations

Adding...

Already a Customer? Log in to view your pricing

Features

Dual mechanical shutter system to help prevent insertions of foreign objects.
Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
.032 inch thick brass triple-wipe power contacts for lasting retention.
Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly.
Auto-ground clip assures positive ground.
Easily accessed break-off line-contact connecting tab for fast and easy split-circuitwiring.
Backed-out tri-drive steel terminal screws. Side wire capability.
For covering patents, see www.legrand.us/patents.
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Special Features: Dual mechanical shutter system to help prevent insertion of foreign objects. Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. Heavy-duty corrosion-resistant zinc-plated steel strap for added strength. Backed-out tri-drive steel terminal screws for faster installation. Internal screw-pressure-plate back and side wire capability. Two back wire holes for additional wiring flexibility. One-piece brass triple-wipe power contacts for lasting retention.
Country Of Origin: MX
Certifications: CULUS
Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Amperage: 20 A
Product Line: Pass & Seymour
NEMA Rating: 5-20R
Voltage: 125.0 V
Number of Wires: 3.0
Wire Size: #14 - #10
Application Sector: Commercial
Number of Poles: Double Pole
Standard: UL498, CSA C22.2 No. 42
Connection: Back and side wire
Environmental Conditions: Flammability: UL94 V2
Dielectric Strength: Withstands 2000V minimum

UPC	78500724195
GTiN	00785007241952
Width	1.296 in
Size	1.296 L x 1.190 W x 3.28 H In
Color	Light Almond
Voltage	125 Volt
Type	Tamper-Resistant
Material	Nylon
Conductor Size	14 - 10 AWG
Applications	Commercial
Mounting Type	Wall
Depth	1.19 in
Height	3.28 in
Grade	Commercial, Construction Specification
Country of Origin	Mexico
Wire Size	14-10 AWG
Capacity	Single
Connection Type	Back and Side Wired
Family Brand Name	Pass & Seymour
NEMA	5-20R
Certifications	CULUS
TC Connection	Back and side wire
Amperage	20 Amp
Dielectric Strength	2000 V
Blade Dimensions	1.296 in L x 1.190 in W x 3.28 in H
Number of Poles	2 Pole
Number of Wires	3
UNSPSC	39121406
Sub Brand	Pass & Seymour
