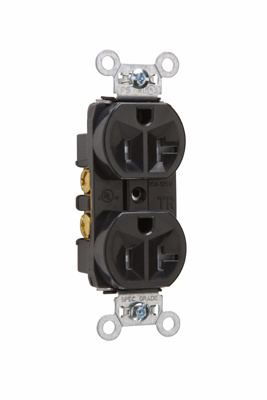

P&S TR5362BK RECEP DUP TR B+S WIRE
$29.94/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # TR5362BK
North Coast Part # 1008722

Features

  • Dual mechanical shutter system to help prevent insertion of foreign objects.
  • Auto-ground clip assures positive ground.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
  • Backed-out tri-drive brass terminal screws for faster installation.
  • Internal screw-pressure-plate back and side wire capability.
  • Two back wire holes for additional wiring flexibility.
  • Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
  • .032 inch thick brass triple-wipe power contacts.
  • Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Country Of Origin: MX
  • Phase: 3
  • Amperage: 20 A
  • Certifications: CULUS
  • Standard: UL 498
  • Product Line: Pass & Seymour
  • NEMA Rating: 5-20R
  • Voltage: 125.0 V
  • Wire Size: 10-14Awg
  • Number of Wires: 3.0
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Special Features: Surge protective, corrosion resistant, led indication, back & side wire

Certifications

  • cULus Listed: 140596

Overview

UPC 78500724371
GTiN 00785007243710
Width 1.322 in
Size 5.13x2x1.4
Color Black
Voltage 125 Volt
Type Receptacles
Material Thermoplastic
Applications commercial
Depth 1.130 in
Height 3.281 in
Grade Specification
Country of Origin Mexico
Wire Size 10-14 Awg
Capacity Duplex
Family Brand Name Pass & Seymour
Certifications CULUS
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3.0
UNSPSC 39121406
Sub Brand Pass & Seymour
NEMA 5-20R
Number of Phases 3 Phase
