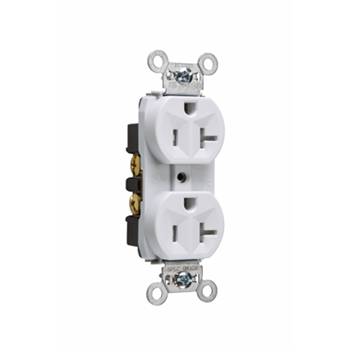

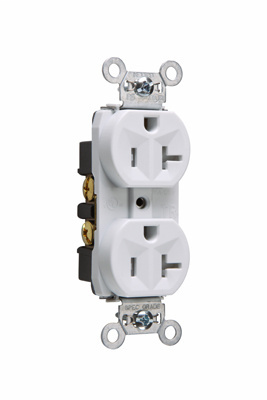

Pass & Seymour TR5362-W 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White Nylon Face Tamper-Resistant Duplex Receptacle

$18.41/ea

In Stock | 252 available at 2 locations

Adding...

Already a Customer? Log in to view your pricing

Features

Dual mechanical shutter system to help prevent insertion of foreign objects.
Auto-ground clip assures positive ground.
Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
Backed-out tri-drive brass terminal screws for faster installation.
Internal screw-pressure-plate back and side wire capability.
Two back wire holes for additional wiring flexibility.
Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
.032 inch thick brass triple-wipe power contacts.
Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
For covering patents, see www.legrand.us/patents.
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Special Features: Dual mechanical shutter system to help prevent insertion of foreign objects. Auto-ground clip assures positive ground. Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring. Backed-out tri-drive brass terminal screws for faster installation. Internal screw-pressure-plate back and side wire capability. Two back wire holes for additional wiring flexibility. Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly. .032 inch thick brass triple-wipe power contacts. Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
Country Of Origin: MX
Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications: CULUS
Amperage: 20 A
NEMA Rating: 5-20R
Product Line: Pass & Seymour
Voltage: 125.0 V
Number of Wires: 3.0
Wire Size: #14 - #10
Application Sector: Commercial
Number of Poles: Double Pole
Standard: UL498, CSA C22.2 No. 42
Connection: Back and side wire
Environmental Conditions: Flammability: UL94 V2
Dielectric Strength: Withstands 2000V minimum

UPC	78500724381
Item Long Description	Tamper-Resistant Hard Use Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt BrownFor detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
GTiN	00785007243819
Width	1.322 in
Size	1.322 L x 1.130 W x 3.281 H In
Color	White
Voltage	125 Volt
Type	Receptacles
Material	Nylon
Applications	Commercial
Depth	1.130 in
Height	3.281 in
Grade	Specification
Country of Origin	Mexico
Wire Size	14-10 AWG
Capacity	Duplex
Family Brand Name	Pass & Seymour
Certifications	CULUS
TC Connection	Back and side wire
Amperage	20 Amp
Dielectric Strength	Withstands 2000V minimum
Number of Poles	2 Pole
Number of Wires	3.0
UNSPSC	39121406
Sub Brand	Pass & Seymour
NEMA	5-20R
