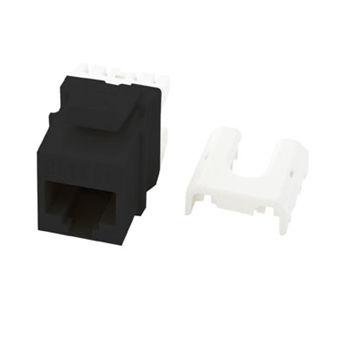

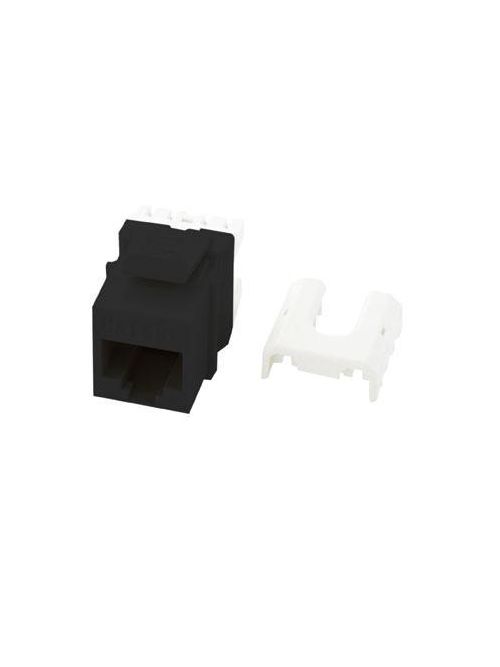

On-Q WP3475-BK RJ45 Category 5E Black Plastic Quick Connect Keystone Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3.94/ea
In Stock | 17 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # WP3475-BK
North Coast Part # 1008939

Features

  • Easily terminate all four pairs using the Legrand Punch & Go Tool (AC3400)
  • RJ45 Inserts can be terminated with any 110 punchdown tool
  • Exceeds EIA/TIA 568A/B Cat 5e Performance Specifications
  • Available in Black, Brown, White, Light Almond, Grey, Blue, Orange, Ivory and Red

Specifications

General Info

  • Color: Black
  • Termination: 8P8C
  • Connection Type: RJ45 Female
  • Type: Keystone Insert

Assembly/Installation Information

  • Installation Tips: Terminate with Punch & Go Tool (AC3400)

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: CAN/CSA-C22.2 No. 182.4-1990
  • CSA Standard: Yes
  • UL Listing No: ANSI/UL 1863
  • UL Standard: Yes
  • UN SPSC: 39121704

Dimensions

  • Depth (Metric): 30 mm
  • Depth (US): 1.18"
  • Height (Metric): 22 mm
  • Height (US): .87"
  • Width (Metric): 16.9 mm
  • Width (US): .665 in

Technical Information

  • Cat5 Cable Rating: Cat5e
  • Humidity: 93% Maximum Noncondensing
  • Material: High Impact Flame Retardant Plastic
  • Operating Temperature (Celsius): -10°C to 60°C
  • Performance Rating: Meets TIA/EIA-568-B.2-1 Cat.6 Short Link requirements
  • Product Fits Into: Keystone Cutout
  • Storage Temperature: -40°C to 70°C

Eco-Benefit Information

  • RoHS Compliant

Categories

Overview

UPC 80442803364
Item Long Description Cat 5e Quick Connect RJ45 Keystone Insert, Black
GTiN 00804428033646
Finish Sn Alloy Plated, Gold and Nickel Plated Spring Wire
Width .665 in
Size 0.76 x 0.67 x 1.18 (19.30 x 16.9 x 30) in (mm)
Color Black
Type RJ45, Female
Material Phosphor Bronze, High Impact Flame Retardant Plastic Housing
Applications Residential use
Cable Type Category 5E
Depth 1.18 in
Height .87 in
Cable Size 24 - 22 AWG
Temperature Rating 14 - 140 F
Family Brand Name On-Q
Termination Type 8P8C
TC Connection RJ45 Female
Blade Dimensions 0.76 x 0.67 x 1.18 in
Environmental Conditions 0 - 93% RH Non-Condensing
Number of Positions 8
Enclosure Housing Material: High Impact Flame Retardant Plastic
Used With Round, Flat and Solid Core Cables
UNSPSC 39121704
Sub Brand Legrand-On-Q
Voltage 1000 Volt
