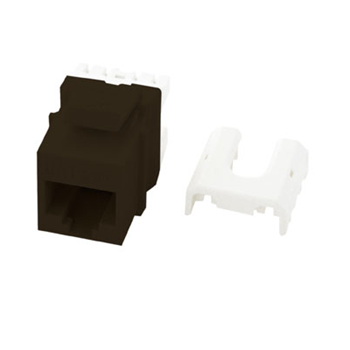

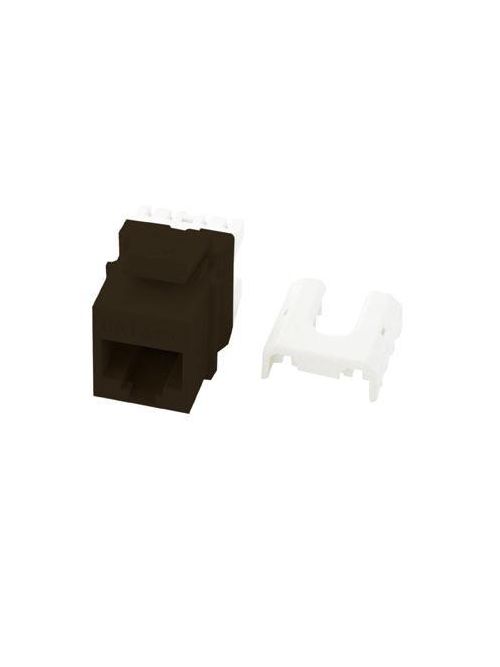

On-Q WP3475-BR RJ45 8-Position 8-Wire Category 5E Brown Plastic Quick Connect Keystone Connector
$4.86/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # WP3475-BR
North Coast Part # 1008935

Features

  • Easily terminate all four pairs using the Legrand Punch & Go Tool (AC3400)
  • RJ45 Inserts can be terminated with any 110 punchdown tool
  • Exceeds EIA/TIA 568A/B Cat 5e Performance Specifications
  • Available in Black, Brown, White, Light Almond, Grey, Blue, Orange, Ivory and Red

Specifications

General Info

  • Color: Brown
  • Termination: 8P8C
  • Connection Type: RJ45 Female
  • Type: Keystone Insert

Assembly/Installation Information

  • Installation Tips: Terminate with Punch & Go Tool (AC3400)

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: CAN/CSA-C22.2 No. 182.4-1990
  • UL Listing No: ANSI/UL 1863
  • UN SPSC: 39121704

Dimensions

  • Depth (Metric): 30 mm
  • Depth (US): 1.18"
  • Height (Metric): 22 mm
  • Height (US): .87"
  • Width (Metric): 16.9 mm
  • Width (US): .665 in

Technical Information

  • Cat5 Cable Rating: Cat5e
  • Humidity: 93% Maximum Noncondensing
  • Material: High Impact Flame Retardant Plastic
  • Operating Temperature (Celsius): -10°C to 60°C
  • Performance Rating: Meets TIA/EIA-568-B.2-1 Cat.6 Short Link requirements
  • Product Fits Into: Keystone Cutout
  • Storage Temperature: -40°C to 70°C

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 80442803665
GTiN 00804428036654
Finish Smooth, Sn Alloy Plated, Gold and Nickel Plated Spring Wire
Width .665 in
Size 0.76 x 0.67 x 1.18 (19.30 x 16.9 x 30) in (mm)
Color Brown
Type RJ45, Female
Material Phosphor Bronze, High Impact Flame-Retardant Plastic Housing
Applications Residential
Cable Type Category 5e
Depth 1.18 in
Height .87 in
Cable Size 22 - 24 AWG
Temperature Rating 14 - 140 F
Family Brand Name On-Q
Termination Type 8P8C
TC Connection RJ45 Female
Blade Dimensions 0.76 x 0.67 x 1.18 in
Environmental Conditions 0 - 93% RH Non-Condensing
Number of Positions 8
Enclosure Housing Material: High Impact Flame Retardant Plastic
Sub Brand Legrand-On-Q
