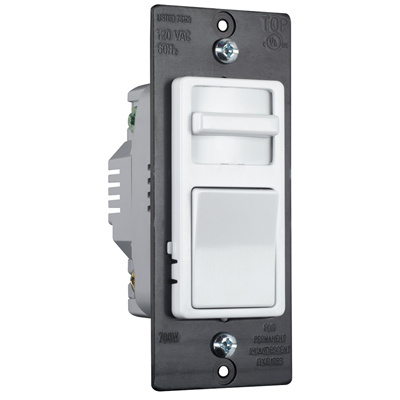

P&S WSLV703PW WIDE SLIDE LV SP/3W 7
$119.24/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Legrand / Pass & Seymour
Mfg Catalog # WSLV703PW
North Coast Part # 1826195

Features

  • Convenient operation - combines ON/OFF Decorator-style switch with separate slider for dimming control.
  • Constant memory returns lights to previous level after a power failure.
  • Sleek,ergonomic P&S Decorator-style matches other Decorator devices.
  • Higher ratings, Single Pole and 3-way operation.
  • Screw-pressure-plate back wire terminals save time, space and money.
  • Package: available with three face colors - Ivory,White,Light Almond: (TC).
  • Interchangeable faces available in four colors: ivory,brown,black,light almond: (sold separately).
  • For covering patents, see www.legrand.us/patents.

Specifications

  • Voltage: 120.0 V
  • Country Of Origin: CN
  • Wattage: 700.0 W
  • Certifications: CULUS
  • Color: White
  • Connection: Screw Terminals
  • Application Sector: Commercial
  • Product Line: Pass & Seymour
  • Load: Magnetic Low Voltage
  • Frequency Rating: 120VAC 60Hz Hz
  • Standard: RoHS, UL Listed, CSA Listed
  • Special Features: P&S dimmers extend bulb life and can reduce energy consumption by up to 30%. This versatile dimmer features a sleek, ergonomic Decorator style to match other P&S Decorator devices. Convenient operation combines ON/OFF Decorator style switch with separate slider for dimming controls.
  • Environmental Conditions: Humidity: Less than 95% non condensing

Certifications

  • cULus Listed

Overview

UPC 78500700984
GTiN 00785007009842
Width 1.75 in
Color White
Operating Temperature Ambient Temperature: 0 and 40C
Voltage 120 Volt
Type Magnetic Low Voltage
Material Thermoplastic
Product Series Wide Slide
Applications Commercial
Depth 1.25 in
Height 4.25 in
Country of Origin China
Wattage 700 Watt
Family Brand Name Pass & Seymour
Certifications CULUS
Buy American Compliant No
TC Connection Screw Terminals
Environmental Conditions 0 to 95 PCT
Number of Poles 1 Pole
Enclosure Thermoplastic
Sub Brand Pass & Seymour
