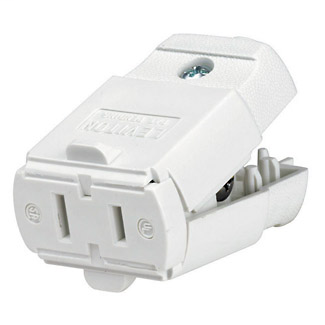

LEV 102-WP CONNECTOR
$6.08/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 102-WP
North Coast Part # 1260425

Specifications

Product Features

  • Amperage: 15 A
  • Warranty: 2-Year Limited
  • Wire: 2
  • NEMA: 1-15R
  • Color: White
  • Country Of Origin: Mexico
  • Standards and Certifications: UL/CSA
  • Blades/Contacts: Brass
  • Feature: Polarized
  • Grade: Residential
  • Body Material: Thermoplastic
  • Wire Gauge: 20-16 AWG
  • Pole: 2
  • Grounding: Non-Grounding
  • Cord Range: .250 Max.
  • Assembly Screws: Steel, Zinc Plated
  • Voltage: 125 VAC

Categories

Overview

UPC 07847703163
GTiN 00078477031636
Warranty Length 2 yr
Size 2.22 H x 1.38 W x 0.81 D IN
Color White
Voltage 125 Volt
Type Polarized
Material Thermoplastic
Conductor Size 20-16 AWG
Applications For Residential use
Mounting Type Cable
Grade Residential
Country of Origin Mexico
Wire Size 0.250 in
Standard CSA,UL
Blade Type Brass
Body Material Thermoplastic
Screw Type Steel,Zinc-Plated
Family Brand Name Leviton
Wire Count 2
NEMA 1-15R
Grounding Non-Grounding
Contact Material Brass
Amperage 15 Amp
Blade Dimensions 1.38 in W x 0.81 in D x 2.22 in H
Environmental Conditions -40 to 60 C
Number of Poles 2 Pole
Number of Wires 2
