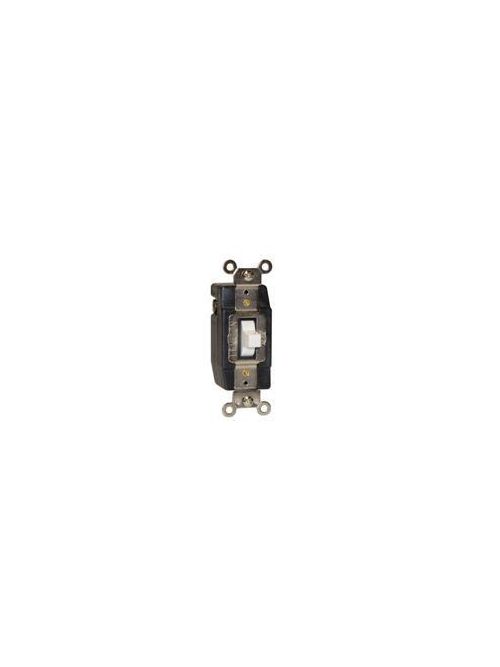

Manufacturer Leviton
Mfg Catalog # 1081-I
North Coast Part # 602270


Material Specifications

  • Contacts: Silver-Alloy
  • Terminal Screws: Brass
  • Cover Material: Thermoplastic Polyester
  • Strap Material: Steel
  • Base Material: Polyester
  • Body Material: Thermoplastic Polyester
  • Frame Material: Polycarbonate
  • Actuator Material: Thermoplastic Nylon

Mechanical Specifications

  • Termination: Back or Side Wire

Product Features

  • Function: Single-Pole Double-Throw
  • Color: Ivory
  • Country Of Origin: Mexico
  • Feature: Momentary Contact CTR OFF
  • Device Type: Toggle Switch
  • Grade: Extra Heavy-Duty Industrial Specification Grade

Electrical Specifications

  • Amperage: 3 A
  • Voltage: 28 VAC/VDC
  • Grounding: Self-Grounding

Environmental Specifications

  • Flammability: UL94V-2
  • Operating Temperature: -40°C to 65°C


UPC 07847735806
Item Long Description 3 Amp, 24 Volt AC/DC, Toggle Double Throw, Center Off, Momentary Contact, Single Pole, AC Quiet Switch, Industrial Grade, Grounding, Ivory
GTiN 00078477358061
Size 46 H x 1.37 W x 1.95 D IN
Color Ivory
Operating Temperature -40 C
Voltage 24 Volt
Type 1-Position
Material Polyester
Applications Commercial
Mounting Type Box
Grade Industrial
Country of Origin Mexico
Connection Type Back Wired,Side Wired
Base Material Polyester
Body Material Thermoplastic Polyester
Family Brand Name Leviton
Flamability Class Rated V-2 Per UL94
Grounding Self-Grounding
Contact Material Silver-Alloy
TC Connection Back Wired;Side Wired
Actuator Toggle, Switch Position Knob
Contact Configuration SPDT
Amperage 3 Amp
Blade Dimensions 1.37 in W x 1.95 in D x 46 in H
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 1 Pole
Device Type Toggle Switch
Enclosure Polyester
Cover Material Thermoplastic Polyester
Action SPDT
