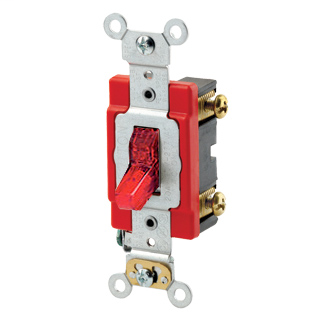

Leviton 1221-PLR 120 VAC 20 Amp 1-Pole 1 Hp Red Thermoplastic Self Grounding Illuminated Toggle Quiet Switch

Specifications

Material Specifications

• Ground Clips: Brass
• Color: Red
• Cover Material: Thermoplastic
• Strap Material: Steel
• Base Material: Thermoplastic
• Grounding Screw: Brass 8-32
• Terminal Screws: Brass 8-32
• Toggle: Polycarbonate
• Contact Material: Silver Alloy

Standards and Certifications

• Warranty: 10-Year Limited
• NOM: 057
• NEMA: WD-1 & WD-6
• UL Fed Spec WS896E: File #E7458
• ANSI: C-73
• UL Standard: UL 20
• CSA C22.2 No. 111: File #152105
• RoHS: Compliant

Electrical Specifications

• Amperage: 20 A
• Dielectric Voltage: Withstands 1500V for 1 minute
• Temperature Rise: Maximum 30 degrees C rise
• Endurance: 50,000 cycles minimum
• Voltage: 120 VAC
• Grounding: Self-Grounding
• Overload UL20 Test: 100 cycles of OL at 4.8 times rated current

Product Features

• Function: Single-Pole
• Color: Red
• Strap Material: Steel
• Country Of Origin: Please Contact Customer Service.
• Feature: Pilot Light - Illuminated ON - Req. Neutral, Illuminated - Load ON (Pilot Light)
• Device Type: Toggle Switch
• Body Material: Thermoplastic
• Grounding: Self-Grounding
• Grade: Extra Heavy-Duty Industrial Specification Grade
• Actuator Material: Polycarbonate

Mechanical Specifications

• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Product ID: Ratings are permanently marked on device
• Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
• Torque Range: 12-14 inch pounds
• Termination: Back or Side Wire

AC Horsepower Ratings

• HP Rating: 1HP-120V

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 65°C
