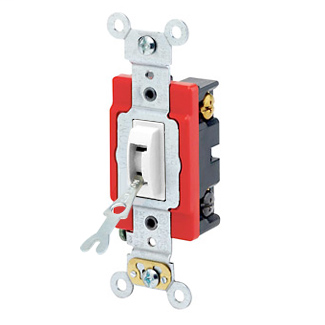

LEV 1224-2WL SM 4W SW LOCKING
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$65.32/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 1224-2WL
North Coast Part # 156280

Specifications

Material Specifications

  • Ground Clips: Brass
  • Color: White
  • Cover Material: Thermoplastic
  • Strap Material: .048” Thick Galvanized Steel
  • Base Material: Thermoplastic
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 8-32
  • Toggle: Polycarbonate
  • Contact Material: Silver Alloy

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • NEMA: WD-1 & WD-6
  • UL Fed Spec WS896E: File #E7458
  • ANSI: C-73
  • UL Standard: UL 20
  • CSA C22.2 No. 111: File #152105
  • RoHS: Compliant

Electrical Specifications

  • Amperage: 20 A
  • Dielectric Voltage: Withstands 1500V for 1 minute
  • Temperature Rise: Maximum 30 degress C rise
  • Endurance: 50,000 cycles minimum
  • Voltage: 120/277 VAC
  • Grounding: Self-Grounding
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current

Product Features

  • Color: White
  • Device Type: Tamper-Resistant Toggle Switch
  • Function: 4-Way
  • Country Of Origin: Mexico
  • Grade: Extra Heavy-Duty Industrial Specification Grade

Mechanical Specifications

  • Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
  • Torque Range: 12-14 inch pounds
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • Max. Amperage: 16 Amp
  • HP Rating: 1HP-120V 2HP-240V

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 65°C

Categories

Overview

UPC 07847736562
Item Long Description 20 Amp, 120/277 Volt, Toggle Locking 4-Way AC Quiet Switch, Extra Heavy Duty Grade, Self Grounding, Back and Side Wired, White
GTiN 00078477365625
Warranty Length 10 yr
Size 46 H x 1.31 W x 13 D IN
Color White
Operating Temperature -40 C
Voltage 120/277 Volt
Type 4-Way
Applications Commercial
Mounting Type Box
Grade Industrial
Country of Origin Mexico
Standard ANSI C-73
Connection Type Back Wired,Side Wired
Torque 12-14 lb-in
Horsepower 1 hp
Base Material Thermoplastic
Toggle Material Polycarbonate
Family Brand Name Leviton
NEMA WD-1,WD-6
Dielectric 1500 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
Contact Material Silver Alloy
TC Connection Back Wired;Side Wired
Actuator Key
Amperage 20 Amp
Max Current 16 A
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Temperature Rise 30 C
Device Type Tamper-Resistant Toggle Switch
Cover Material Thermoplastic
Blade Dimensions 1.31 in W x 13 in D x 46 in H
