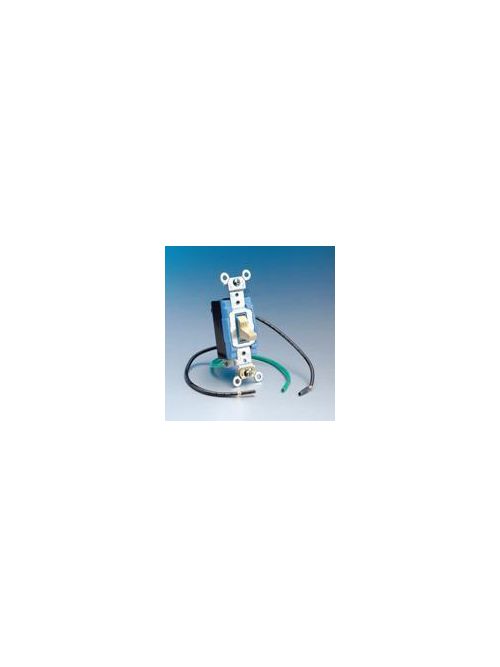

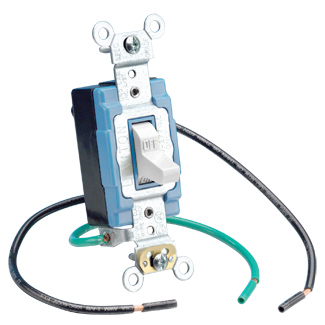

LEV 1242-W PIGTAIL SWITCH
Product image thumbnail 0
Product image thumbnail 1
$19.26/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 1242-W
North Coast Part # 1094704

Specifications

Material Specifications

  • Mounting Strap: Steel
  • Grounding Leads: 6", #12 AWG THHN
  • Contacts: Silver-Cadmium .031 Thick
  • Color: White
  • Cover Material: Urea
  • Strap Material: .048” Thick Galvanized Steel
  • Base Material: Urea
  • Body Material: Thermoplastic
  • Terminal Leads: 6", #12 AWG THHN
  • Mounting Screws: Triple Combination Head, Steel
  • Termination: Pre-Wired Leads
  • Actuator Material: Thermoplastic

Standards and Certifications

  • Warranty: 2-Year Limited
  • NOM: 057
  • NEMA: WD-1 & WD-6
  • UL Fed Spec WS896E: File #E7458
  • ANSI: C-73
  • UL Standard: UL 20
  • CSA C22.2 No. 111: File #152105

Electrical Specifications

  • Amperage: 15 A
  • Maximum Working Voltage: 120/277 VAC as rated
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Maximum 30 degress C rise
  • Max. Amperage: 12 Amp
  • Grounding: Self-Grounding
  • Dielectric Voltage Withstand: 1500V minimum
  • Voltage: 120/277 VAC

Product Features

  • Color: White
  • Device Type: Toggle Switch
  • Function: 3-Way
  • Country Of Origin: Mexico
  • Grade: Extra Heavy-Duty Industrial Specification Grade

Mechanical Specifications

  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Torque Range: 12-14 inch pounds
  • Termination: Pre-Wired Leads
  • Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
  • Lead Identification: Leads identified in accordance with UL 498 (black, white & green)

AC Horsepower Ratings

  • HP Rating: 1/2HP-120V 2HP-240V-277V

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 65°C

Overview

UPC 07847733033
GTiN 00078477330333
Warranty Length 2 yr
Size 46 H x 1.31 W x 13 D IN
Color White
Operating Temperature -40 C
Voltage 120/277 Volt
Type Toggle Switch
Applications Commercial
Mounting Type Box
Grade Extra Heavy-Duty Industrial Specification
Country of Origin Mexico
Standard ANSI C-73
Connection Type Wire Lead
Torque 12-14 lb-in
Horsepower 1/2 hp
Base Material Urea
Body Material Thermoplastic
Family Brand Name Leviton
NEMA WD-1,WD-6
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
Contact Material Silver-Cadmium
TC Connection Wire Lead
Actuator Toggle
Amperage 15 Amp
Max Current 12 A
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 3 Pole
Temperature Rise 30 C
Device Type Toggle Switch
Cover Material Urea
