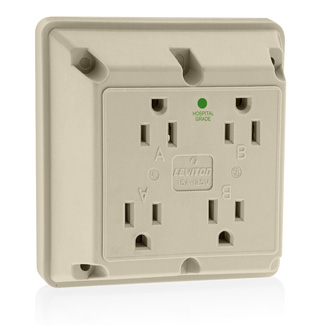

LEV 1254-HI 4 IN 1 RECEPT
$44.29/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 1254-HI
North Coast Part # 665552

Specifications

Material Specifications

  • Line Contacts: Phosphor Bronze
  • Face Material: Nylon
  • Color: Ivory
  • Strap Material: Galvanized Steel with Riveted Ground Contacts
  • Grounding Screw: Plated Steel
  • Terminal Screws: Brass 8-32
  • Body Material: Nylon
  • Mounting Screws: Zinc-Plated Steel 8-32

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • UL498HG: File E13399
  • ANSI: C-73
  • NEMA: WD-1 WD-6

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Grounding

Product Features

  • NEMA: 5-15R
  • Color: Ivory
  • Brand: 4-in-1
  • Country Of Origin: Mexico
  • Grade: Heavy-Duty Hospital Grade
  • Device Type: Quadruplex Receptacle Outlet

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-12 AWG
  • Torque Range: 12-14 inch pounds
  • Termination: Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847783048
GTiN 00078477830482
Warranty Length 10 yr
Size 4.50 L x 4.50 W x 1.15 D IN
Color Ivory
Operating Temperature -40 C
Voltage 125 Volt
Type 4-in-1
Material Nylon
Applications For Commercial Use
Mounting Type Wall Box
Grade Heavy-Duty Hospital
Country of Origin Mexico
Wire Size 14-12 AWG
Standard ANSI C-73
Connection Type Screw Terminal
Torque 12-14 lb-in
Horsepower 1/2 hp
Face Material Nylon
Body Material Nylon
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA WD-1,WD-6,5-15R
Number of Phases 1
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Grounding
TC Connection Screw Terminal
Amperage 15 Amp
Dielectric Strength 2000 V
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
Device Type Quadruplex Receptacle Outlet
Conductor Size 14-12 AWG
Contact Material Phosphor Bronze
Blade Dimensions 4-1/2 x 4-1/2 x 1.15 in
