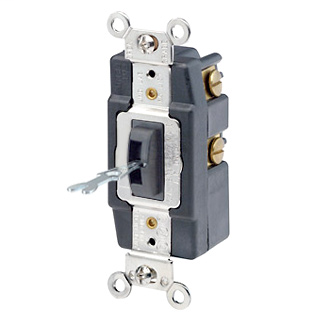

LEV 1287-L 30A SPDT MAINT CONTACT
$125.35/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 1287-L
North Coast Part # 543316

Specifications

Mechanical Specifications

  • Termination: Back or Side Wire

Electrical Specifications

  • Amperage: 30 A
  • Voltage: 120/277 VAC
  • Grounding: Self-Grounding

Product Features

  • Amperage: 30 A
  • Function: Single-Pole Double-Throw
  • Warranty: 10-Year Limited
  • HP Rating: 2HP-120V 2HP-240V-277V
  • Color: Black
  • Standards and Certifications: UL/CSA
  • Strap Material: Steel
  • Country Of Origin: Mexico
  • Feature: Maintained Contact CTR OFF
  • Device Type: Tamper-Resistant Toggle Switch
  • Body Material: Thermoplastic
  • Max. Amperage: 24 Amp
  • Grounding: Self-Grounding
  • Grade: Extra Heavy-Duty Industrial Specification Grade
  • Termination: Back or Side Wire
  • Actuator Material: Thermoplastic Nylon
  • Voltage: 120/277 VAC

Categories

Overview

UPC 07847785517
GTiN 00078477855171
Warranty Length 10 yr
Size 46 H x 1.37 W x 1.26 D IN
Color Black
Operating Temperature -40 To 65 C
Voltage 120/277 Volt
Type Toggle Switch
Applications Commercial
Mounting Type Box
Grade Industrial
Country of Origin Mexico
Standard CSA,UL
Connection Type Back Wired,Side Wired
Horsepower 2 hp
Body Material Thermoplastic
Family Brand Name Leviton
Grounding Self-Grounding
TC Connection Back Wired;Side Wired
Actuator Key
Amperage 30 Amp
Max Current 24 A
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 1 Pole
Device Type Tamper-Resistant Toggle Switch
Action Maintained
Contact Configuration SPDT
Blade Dimensions 1.37 in W x 1.26 in D x 46 in H
