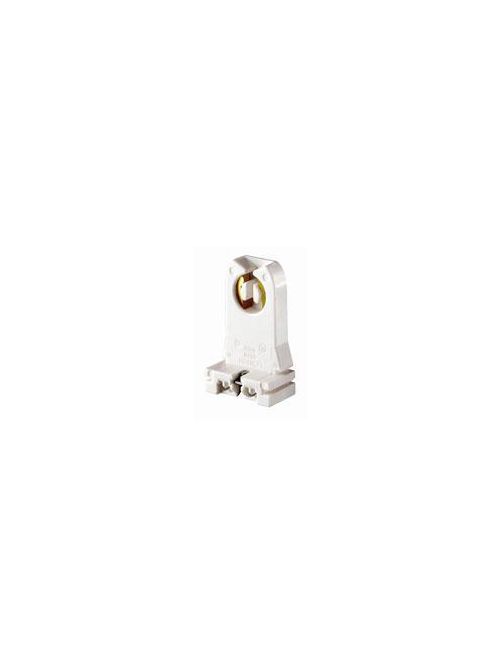

Leviton 13357-N 600 Volt 660 W White Thermoset Slide-On Medium Bi-Pin Standard Fluorescent Lampholder
Product image thumbnail 0
Product image thumbnail 1
$4.71/ea
In Stock | 312 available at 17 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 13357-N
North Coast Part # 154253

Specifications

Mechanical Specifications

  • Screw: 6-32 X 3/8 Zinc-Plated
  • Mounting Type: Slide-On
  • Color: White
  • Nut: 6-32 Zinc-Plated
  • Body Material: Thermoset
  • Panel Thickness: 18-20 Ga. Panel
  • Wire Strip Length: 3/8 Inch
  • Contact Type: Turn-Type
  • Termination: Quickwire 18AWG Solid or Str. Tinned
  • Availability: Distribution
  • Contact Material: Copper-Alloy

Standards and Certifications

  • NOM Certified: 057
  • CSA Certified: File LR-5863
  • UL Listed: File E5833

Product Features

  • Warranty: 1 Year Limited
  • Standards and Certifications: UL/CSA/NOM
  • Voltage: 600 Volt
  • Mounting Type: Slide-On
  • Light Type: Fluorescent
  • Color: White
  • Notes: Captive Nut Screws Packed Bulk
  • Country Of Origin: Please Contact Customer Service.
  • Feature: Captive Nut Screws Packed Bulk
  • Lamp Base: Medium
  • Lamp Contacts: Bi-Pin
  • Panel Thickness: 18-20 Ga. Panel
  • Style Name: Tall Profile
  • Contact Type: Turn-Type
  • Termination: Quickwire 18AWG Solid or Str. Tinned
  • Availability: Distribution
  • Rated Wattage: 660W
  • Lampholder Type: Linear
> View Substitutes (1)

Overview

UPC 07847785125
GTiN 00078477851258
Length 1.25 in
Warranty Length 1 yr
Color White
Voltage 600 Volt
Type Standard Fluorescent Lampholder
Material Plastic
Applications Commercial
Mounting Type Slide-On
Style Tall Profile
Bulb Type Fluorescent
Standard CSA,NOM,UL
Wattage 660 Watt
Body Material Thermoset
Base Medium
Family Brand Name Leviton
Lamp Type Fluorescent
Light Type Fluorescent
Contact Material Copper-Alloy
Blade Dimensions 1-1/4 in L
CSA LR-5863
