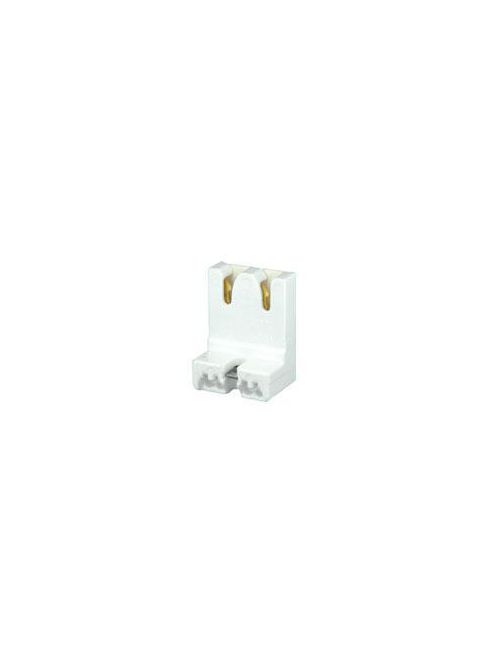

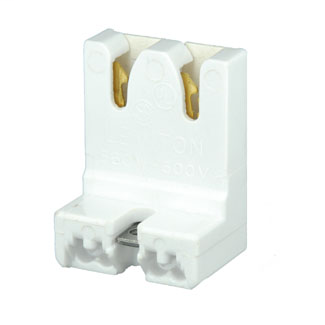

Leviton 13451-N Medium Base T8 Only Bi-Pin Fluorescent Lampholder
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$6.93/ea
In Stock | 14 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 13451-N
North Coast Part # 161922

Specifications

Mechanical Specifications

  • Screw: 6-32 X 3/8 Zinc-Plated
  • Mounting Type: Screw Mount
  • Color: White
  • Nut: 6-32 Zinc-Plated
  • Body Material: Thermoset
  • Panel Thickness: 20 Ga. Panel
  • Wire Strip Length: 3/8 Inch
  • Contact Type: Straight-In Double Edge
  • Termination: Quick-Connect 18AWG Solid or Str. Tinned
  • Availability: Distribution
  • Contact Material: Copper-Alloy

Standards and Certifications

  • NOM Certified: 057
  • CSA Certified: File LR-5863
  • UL Listed: File E5833

Product Features

  • Warranty: 1 Year Limited
  • Voltage: 600 Volt
  • Mounting Type: Screw Mount
  • Light Type: Fluorescent
  • Color: White
  • Notes: Captive Nut Screws Packed Bulk
  • Country Of Origin: Please Contact Customer Service.
  • Lamp Base: Medium
  • Lamp Contacts: Bi-Pin
  • Standards and Certifications: UL/CSA/NOM
  • Style Name: Low Profile
  • Contact Type: Straight-In Double Edge
  • Termination: Quick-Connect 18AWG Solid or Str. Tinned
  • Lamp Type: T8 Only
  • Availability: Distribution
  • Rated Wattage: 660W
  • Lampholder Type: Linear

Categories

Overview

UPC 07847785440
Item Long Description Medium Base, T8 Only Bi-Pin, Fluorescent Lampholder, Pack of 5
GTiN 00078477854402
Length 1 in
Warranty Length 1 yr
Color White
Voltage 600 Volt
Type Standard
Material Plastic
Terminal Type Screw
Applications For Commercial use
Mounting Type Screw Mount
Style Low Profile
Bulb Type Fluorescent
Standard CSA,NOM,UL
Wattage 660 Watt
Body Material Thermoset
Base Medium
Family Brand Name Leviton
Lamp Type Fluorescent
Light Type Fluorescent
Contact Material Copper-Alloy
Blade Dimensions 1 in L
CSA LR-5863
