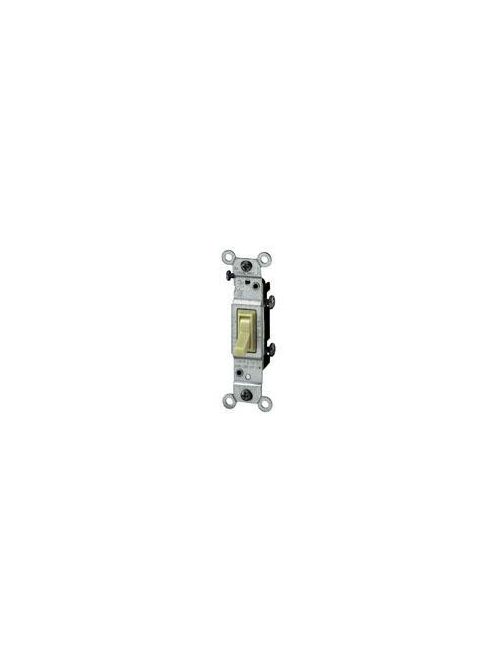

Leviton 1451-2I 120 VAC 15 Amp 1-Pole 1/2 Hp Ivory Thermoplastic Grounding Framed Toggle Quiet Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1.43/ea
In Stock | 1253 available at 21 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 1451-2I
North Coast Part # 13988

Features

  • Faster installation with combination of side wiring and Quickwire push-in wiring
  • Quickwire accepts conductors up to #14 AWG.
  • Side wire accepts conductors up to #12 AWG
  • Large head triple-drive combination screws (Standard, Phillips, Robertson) for fast wiring installation
  • Impact-resistant, durable thermoplastic toggle and frame
  • Backed by a Limited Two-Year Warranty

Specifications

Product Features

  • Amperage: 15 A
  • Warranty: 2-Year Limited
  • HP Rating: 1/2HP-120V
  • Color: Ivory
  • Standards and Certifications: UL/CSA
  • Strap Material: Steel
  • Country Of Origin: Please Contact Customer Service.
  • Feature: Framed
  • Pole: 1
  • Body Material: Thermoplastic
  • Max. Amperage: 12 Amp
  • Grounding: Grounding
  • Termination: Quickwire Push-In & Side
  • Actuator Material: Thermoplastic
  • Voltage: 120 VAC

videos

> View Substitutes (1)

Categories

Overview

UPC 07847777271
GTiN 00078477772713
Warranty Length 2 yr
Size 4.20 H x 1.31 W x 11 D IN
Color Ivory
Operating Temperature -40 To 65 C
Voltage 120 Volt
Type Single-Pole AC Quiet Switch
Applications Commercial
Mounting Type Wallplate
Standard UL,CSA
Connection Type Push-In And Side Wired
Horsepower 1/2 hp
Body Material Thermoplastic
Family Brand Name Leviton
Insulation Material Thermoplastic
Grounding Grounding
TC Connection Push-In and Side Wired
Actuator Cam
Amperage 15 Amp
Max Current 12 A
Environmental Conditions Flammability (Rated V-2 Per UL94)
Contact Rating 240 V
Number of Poles 1 Pole
Action SP
