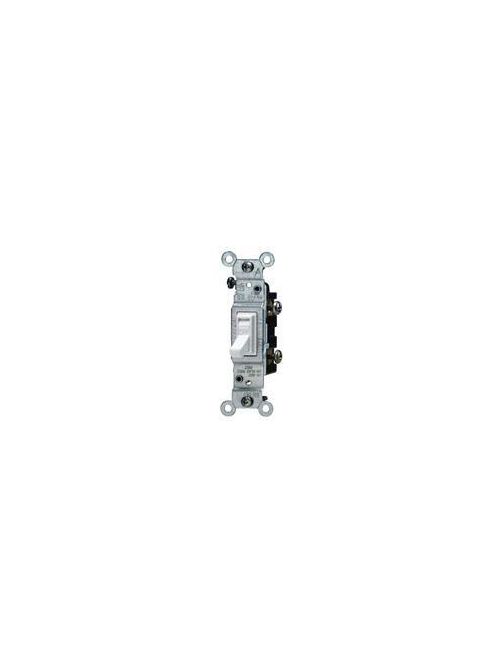

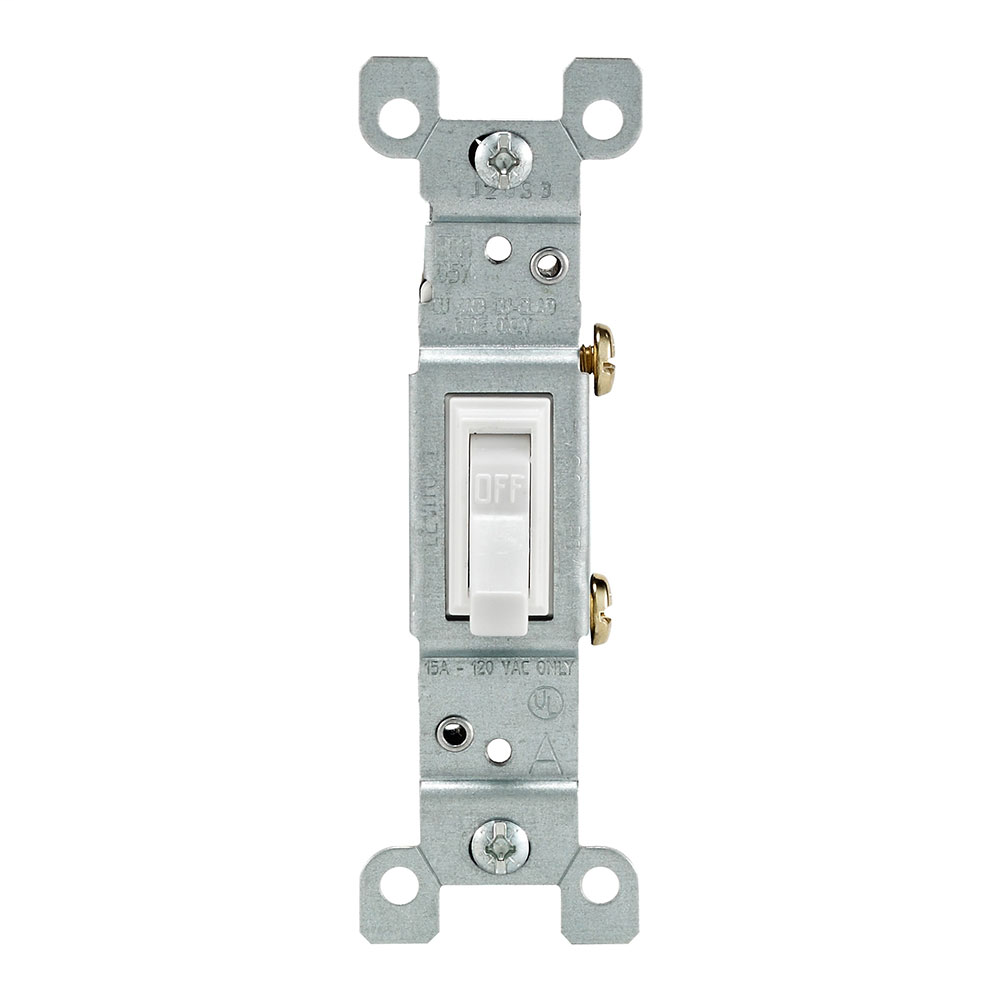

Leviton 1451-WCP 120 VAC 15 Amp 1-Pole 1/2 Hp White Thermoplastic Non-Grounding Framed Toggle Quiet Switch
$1.43/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 1451-WCP
North Coast Part # 159533

Specifications

Product Features

  • Amperage: 15 A
  • Warranty: 2-Year Limited
  • HP Rating: 1/2HP-120V
  • Color: White
  • Standards and Certifications: UL/CSA
  • Strap Material: Steel
  • Country Of Origin: United States
  • Feature: Framed
  • Pole: 1
  • Body Material: Thermoplastic
  • Max. Amperage: 12 Amp
  • Grounding: Non-Grounding
  • Termination: Quickwire Push-In & Side
  • Actuator Material: Thermoplastic
  • Voltage: 120 VAC

videos

Categories

Overview

UPC 07847715143
GTiN 00078477151433
Warranty Length 2 yr
Size 4.20 H x 1.31 W x 11 D IN
Color White
Operating Temperature -40 To 65 C
Voltage 120 Volt
Type Single-Pole AC Quiet Switch
Applications Commercial
Mounting Type Wallplate
Country of Origin United States
Standard CSA,UL
Connection Type Push-In And Side Wired
Horsepower 1/2 hp
Body Material Thermoplastic
Family Brand Name Leviton
Insulation Material Thermoplastic
Grounding Non-Grounding
TC Connection Push-In and Side Wired
Actuator Cam
Amperage 15 Amp
Max Current 12 A
Environmental Conditions Flammability (Rated V-2 Per UL94)
Contact Rating 240 V
Number of Poles 1 Pole
Action SP
