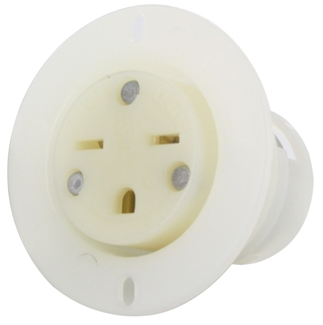

LEV 15679-C #1CD/FLANGED OUTLET
$30.42/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 15679-C
North Coast Part # 1095238

Specifications

Material Specifications

  • Wire Module: Nylon
  • Color: White
  • Blades/Contacts: Solid Brass
  • Terminal Screws: Brass
  • Body Material: Super Tough Nylon
  • Assembly Screws: Steel, Zinc Plated

Standards and Certifications

  • Warranty: Limited Lifetime Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • ANSI: C-73
  • UL 498: File E13399
  • UL Fed Spec WC-596: File E13393
  • NEMA: WD-6

Product Features

  • Face Material: Nylon
  • NEMA: 6-15R
  • Color: White
  • Brand: Black and White
  • Strap Material: Thermoplastic Nylon
  • Country Of Origin: United States
  • Device Type: Straight Blade Flanged Inlet
  • Termination: Back

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 18-10 AWG

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Voltage: 250 VAC
  • Grounding: Grounding

Environmental Specifications

  • Environment: Dry
  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847779566
GTiN 00078477795668
Warranty Length Lifetime Limited
Size 2.50 Dia x 1.78 H IN
Color White
Operating Temperature -40 C
Voltage 250 Volt
Type Flanged Outlet,Straight Blade
Material Nylon
Applications Commercial
Mounting Type Flange
Country of Origin USA
Wire Size 18-10 AWG
Standard ANSI C-73
Connection Type Back Wired
Blade Type Solid Brass
Face Material Nylon
Body Material Super Tough Nylon
Screw Type Steel,Zinc-Plated
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 6-15R,WD-6
Dielectric 2000 V
Environment Dry
Flamability Class Rated V-2 Per UL 94
Grounding Grounding
TC Connection Back Wired
Amperage 15 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Straight Blade Flanged Inlet
