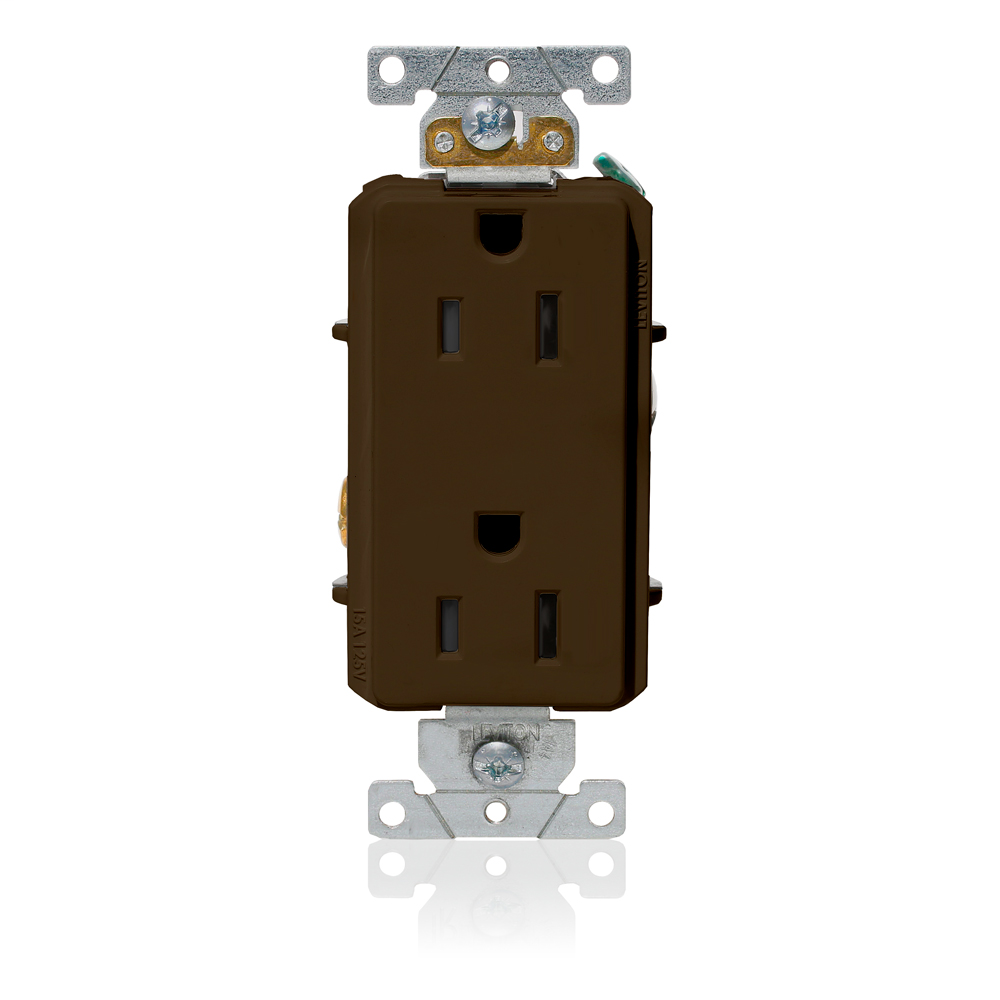

LEV 16242 RECEPT DECORA DUPLEX
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$7.32/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 16242
North Coast Part # 1006578

Specifications

Material Specifications

  • Ground Clips: Brass-Plated
  • Line Contacts: 0.030" Phosphor Bronze
  • Product ID: Ratings are permanently marked on device
  • Face Material: PBT Polyester Blend
  • Terminal Accom.: 14-10 AWG
  • Color: Brown
  • Strap Material: Steel (Galvanized G60)
  • Grounding Screw: #8 Hex Head, Triple-Drive Brass
  • Terminal Screws: #8 Triple-Drive Brass
  • Body Material: PBT Polyester Blend
  • Termination: Side Wire
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

Standards and Certifications

  • Warranty: 10-Year Limited
  • Certification/Listing: cULus, NON-ANCE
  • ANSI: C-73
  • Applicable Standards: UL 498, Fed Spec W-C-596, CSA C22.2 No.42
  • At Rated Voltage: 1/2 HP
  • RoHS: RoHS Compliant

Electrical Specifications

  • Amperage: 15 A
  • Flammability: Rated V-2 per UL 94
  • Wire: 3
  • Dielectric Voltage: Withstands 3000V min
  • Temperature Rise: Max 30°C temperature rise at full rated current
  • Operating Temperature: -40°C to 60°C
  • Current Limiting: Full Rated Current
  • Pole: 2
  • Grounding: Self-Grounding
  • Voltage: 125 VAC

Product Features

  • Warranty: 10-Year Limited
  • NEMA: 5-15R
  • Feature 4: Smooth Face
  • Grade: Commercial Specification Grade
  • Brand: Decora Plus
  • Country Of Origin: Mexico
  • ANSI: C-73
  • Device Type: Duplex Receptacle Outlet

Mechanical Specifications

  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • NEMA: 5-15R
  • Feature 4: Smooth Face
  • Color: Brown
  • Brand: Decora Plus
  • Grade: Commercial Specification Grade
  • Device Type: Duplex Receptacle Outlet
  • Grounding: Self-Grounding
  • Termination: Side Wire
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

AC Horsepower Ratings

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 3000V min
  • Temperature Rise: Max 30°C temperature rise at full rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding
  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Ground Clips: Brass-Plated
  • Flammability: Rated V-2 per UL 94
  • Face Material: PBT Polyester Blend
  • Color: Brown
  • Strap Material: Steel (Galvanized G60)
  • Operating Temperature: -40°C to 60°C
  • Terminal Screws: #8 Triple-Drive Brass
  • Grounding Screw: #8 Hex Head, Triple-Drive Brass
  • Line Contacts: 0.030" Phosphor Bronze
  • Body Material: PBT Polyester Blend

Categories

Overview

UPC 07847778820
Item Long Description Levitons line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
GTiN 00078477788202
Warranty Length 10 yr
Size 46 H x 1.52 W x 1.14 D IN
Color Brown
Operating Temperature -40 C
Voltage 125 Volt
Type Heavy Duty
Material Thermoplastic
Applications For Commercial
Mounting Type Wall, Flush, Screw
Grade Commercial
Country of Origin Mexico
Wire Size 14-10 AWG
Standard ANSI C-73,CSA C22.2 No.42,Fed Spec W-C-596,UL 498
Connection Type Side Wired
Horsepower 1/2 hp
Face Material Polyester
Body Material PBT Polyester Blend
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R
Number of Phases 1 Phase
Dielectric 3000 V
Certifications CULus,NON-ANCE
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Side Wired
Amperage 15 Amp
Dielectric Strength 2000 V
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 30 C
Device Type Duplex Receptacle Outlet
Sub Brand Decora Plus
Conductor Size 14-10 AWG
Blade Dimensions 46 in H x 1.52 in W x 1.14 in D
