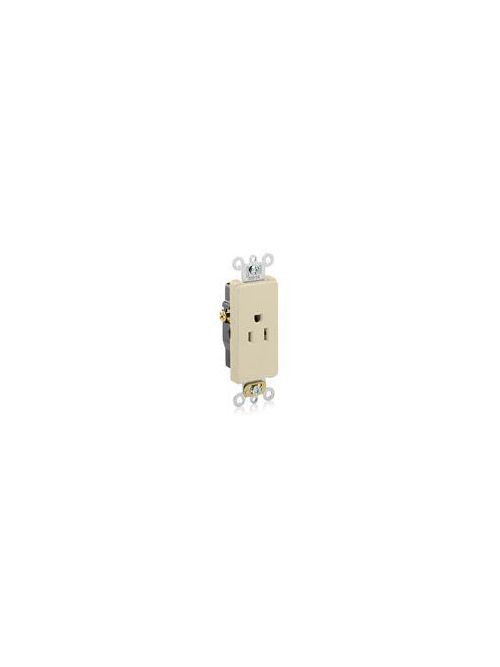

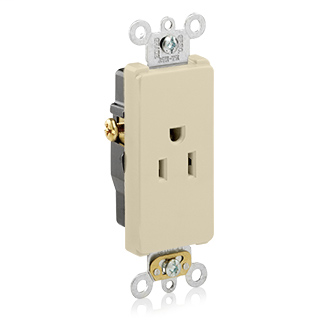

Leviton 16251-I 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15R 1/2 Hp Ivory Thermoplastic Nylon Straight Blade Single Receptacle
$9.90/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 16251-I
North Coast Part # 153817

Specifications

Material Specifications

  • Ground Clips: Brass-Plated
  • Line Contacts: Brass Triple-Wipe .031 Thick
  • Face Material: Thermoplastic Nylon
  • Terminal Screws: Brass 10-32
  • Grounding Screw: Brass 8-32
  • Body Material: Thermoplastic Nylon
  • Yoke: Zinc-Plated Steel
  • Clamp Nuts: Zinc-Plated Steel

Standards and Certifications

  • ANSI: C-73
  • UL498: File E13399
  • NEMA: WD-6
  • NOM: 057

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • Amperage: 15 A
  • Warranty: 10-Year Limited
  • Face Material: Thermoplastic Nylon
  • NEMA: 5-15R
  • Feature 4: Smooth Face
  • Color: Ivory
  • Brand: Decora Plus
  • Strap Material: Steel
  • Country Of Origin: Please Contact Customer Service.
  • Grade: Commercial Specification Grade
  • Device Type: Single Receptacle Outlet
  • Body Material: Thermoplastic Nylon
  • Wire: 3
  • Pole: 2
  • Grounding: Self-Grounding
  • Termination: Back or Side Wire
  • Standards and Certifications: UL
  • Voltage: 125 VAC

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, White-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847747333
GTiN 00078477473337
Warranty Length 10 yr
Size 46 H x 1.52 W x 1.14 D IN
Color Ivory
Operating Temperature 60 C
Voltage 125 Volt
Type Straight Blade,Single Outlet
Material Thermoplastic
Applications For Commercial
Mounting Type Wallbox
Grade Commercial
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Back and Side Wired
Horsepower 1/2 hp
Face Material Thermoplastic Nylon
Body Material Thermoplastic Nylon
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA WD-6,5-15R
Number of Phases 1
Dielectric 2000 V
Certifications UL
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Back and Side Wired
Amperage 15 Amp
Dielectric Strength 2000 V
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Single Receptacle Outlet
Sub Brand Decora Plus
Conductor Size 14-10 AWG
Blade Dimensions 46 in H x 1.52 in W x 1.14 in D
