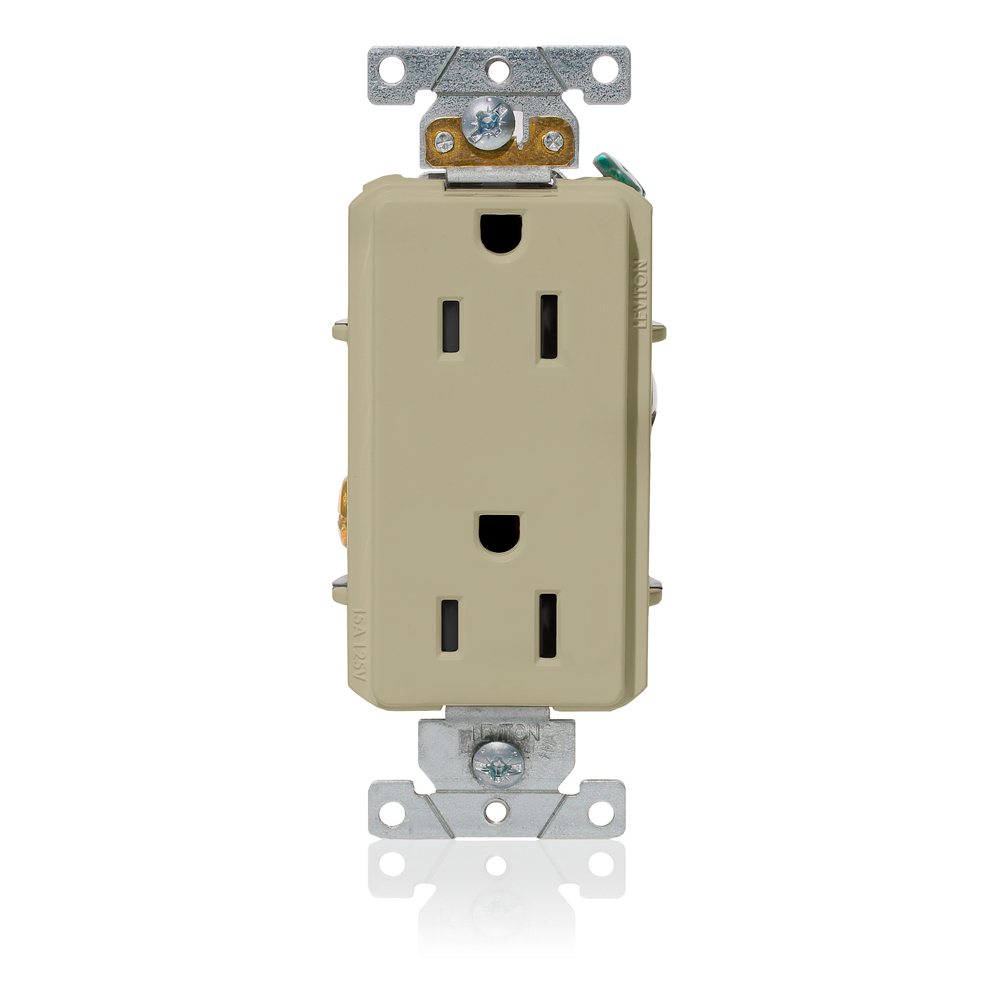

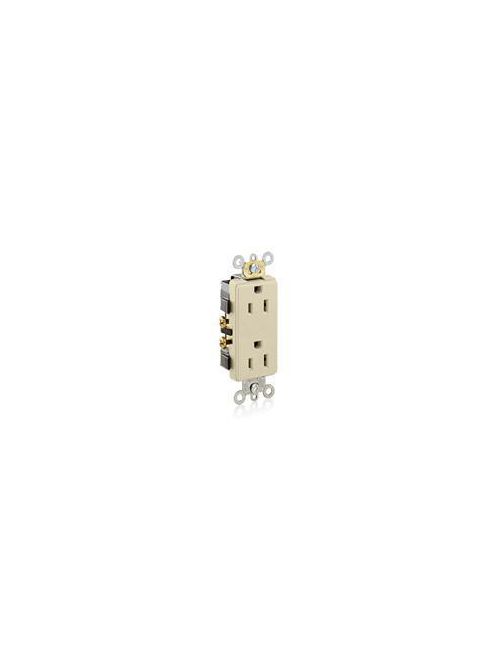

Leviton 16252-I 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15R 1/2 Hp Ivory Thermoplastic Nylon Straight Blade Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$9.27/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 16252-I
North Coast Part # 153962

Specifications

Material Specifications

  • Ground Clips: Brass-Plated
  • Line Contacts: 0.030" Phosphor Bronze
  • Product ID: Ratings are permanently marked on device
  • Face Material: PBT Polyester Blend
  • Terminal Accom.: 14-10 AWG
  • Color: Ivory
  • Strap Material: Steel (Galvanized G60)
  • Grounding Screw: #8 Hex Head, Triple-Drive Brass
  • Terminal Screws: #8 Triple-Drive Brass
  • Body Material: PBT Polyester Blend
  • Termination: Back and Side Wire
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

Standards and Certifications

  • Warranty: 10-Year Limited
  • Certification/Listing: cULus, NON-ANCE
  • ANSI: C-73
  • Applicable Standards: UL 498, Fed Spec W-C-596, CSA C22.2 No.42
  • At Rated Voltage: 1/2 HP
  • RoHS: RoHS Compliant

Electrical Specifications

  • Amperage: 15 A
  • Flammability: Rated V-2 per UL 94
  • Wire: 3
  • Dielectric Voltage: Withstands 3000V min
  • Temperature Rise: Max 30°C temperature rise at full rated current
  • Operating Temperature: -40°C to 60°C
  • Current Limiting: Full Rated Current
  • Pole: 2
  • Grounding: Self-Grounding
  • Voltage: 125 VAC

Product Features

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • Feature 4: Smooth Face
  • Grade: Commercial Specification Grade
  • Brand: Decora Plus
  • UL498: File E13399
  • Country Of Origin: Mexico
  • ANSI: C-73
  • Device Type: Duplex Receptacle Outlet
  • NEMA: 5-15R

Mechanical Specifications

  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • NEMA: 5-15R
  • Feature 4: Smooth Face
  • Color: Ivory
  • Brand: Decora Plus
  • Grade: Commercial Specification Grade
  • Device Type: Duplex Receptacle Outlet
  • Termination: Back and Side Wire
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

AC Horsepower Ratings

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 3000V min
  • Temperature Rise: Max 30°C temperature rise at full rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding
  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Ground Clips: Brass-Plated
  • Flammability: Rated V-2 per UL 94
  • Face Material: PBT Polyester Blend
  • Color: Ivory
  • Strap Material: Steel (Galvanized G60)
  • Operating Temperature: -40°C to 60°C
  • Terminal Screws: #8 Triple-Drive Brass
  • Grounding Screw: #8 Hex Head, Triple-Drive Brass
  • Line Contacts: 0.030" Phosphor Bronze
  • Body Material: PBT Polyester Blend
  • Clamp Nuts: Zinc-Plated Steel

Overview

UPC 07847781967
GTiN 00078477819678
Warranty Length 10 yr
Size 46 H x 1.52 W x 1.14 D IN
Color Ivory
Operating Temperature 60 C
Voltage 125 Volt
Type Duplex Outlet,Straight Blade
Material Thermoplastic
Conductor Size 14 - 10 AWG
Applications Commercial
Mounting Type Wall Box
Grade Commercial
Country of Origin Mexico
Wire Size 14-10 AWG
Standard UL 498,ANSI C-73,Fed Spec W-C-596,CSA C22.2 No.42
Connection Type Back and Side Wired
Horsepower 1/2 hp
Face Material PBT Polyester Blend
Body Material PBT Polyester Blend
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R
Number of Phases 1
Dielectric 3000 V
Certifications NON-ANCE,CULus
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Back and Side Wired
Amperage 15 Amp
Dielectric Strength 2000 V
Blade Dimensions 1.52 in W x 1.14 in D x 46 in H
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 30 C
Device Type Duplex Receptacle Outlet
Sub Brand Decora Plus
