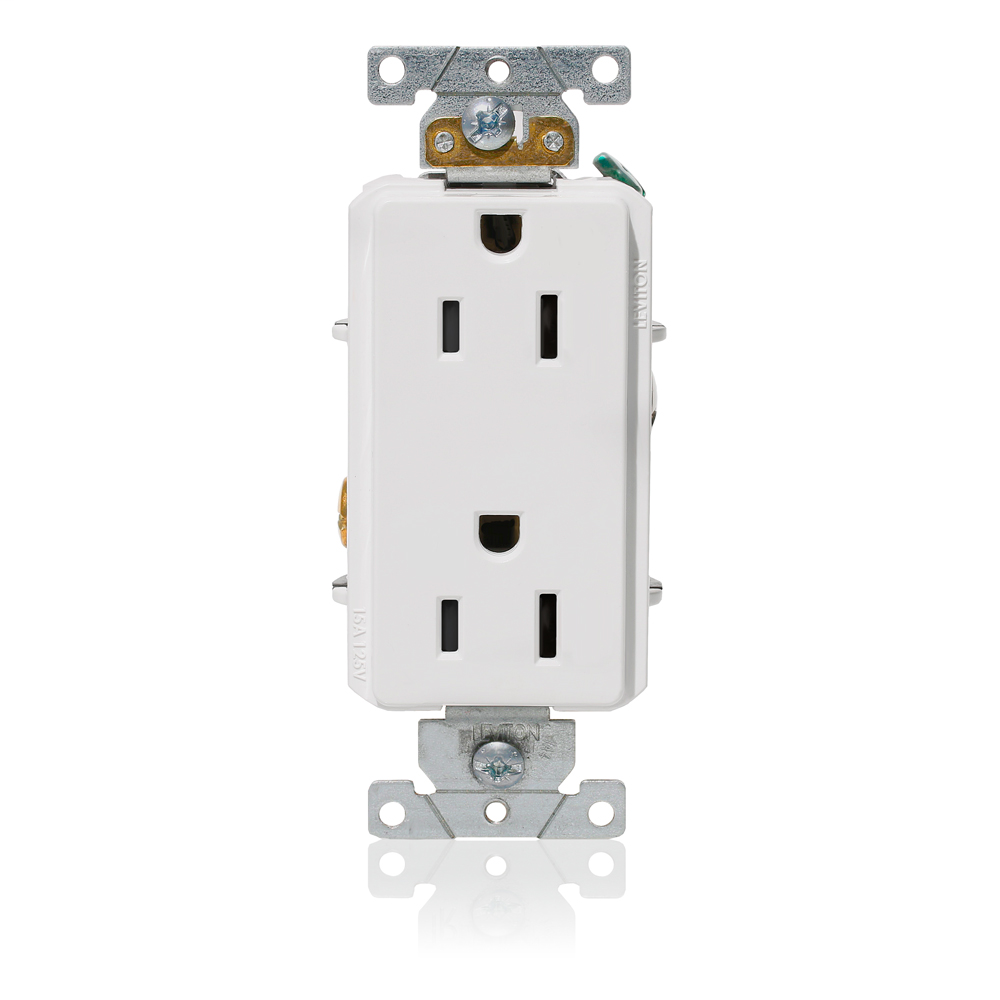

Leviton 16252-W 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15R 1/2 Hp White Thermoplastic Nylon Straight Blade Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$9.27/ea
In Stock | 116 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 16252-W
North Coast Part # 154094

Specifications

Material Specifications

  • Ground Clips: Brass-Plated
  • Line Contacts: 0.030" Phosphor Bronze
  • Product ID: Ratings are permanently marked on device
  • Face Material: PBT Polyester Blend
  • Terminal Accom.: 14-10 AWG
  • Color: White
  • Strap Material: Steel (Galvanized G60)
  • Grounding Screw: #8 Hex Head, Triple-Drive Brass
  • Terminal Screws: #8 Triple-Drive Brass
  • Body Material: PBT Polyester Blend
  • Termination: Back and Side Wire
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

Standards and Certifications

  • Warranty: 10-Year Limited
  • Certification/Listing: cULus, NON-ANCE
  • ANSI: C-73
  • Applicable Standards: UL 498, Fed Spec W-C-596, CSA C22.2 No.42
  • At Rated Voltage: 1/2 HP
  • RoHS: RoHS Compliant

Electrical Specifications

  • Amperage: 15 A
  • Flammability: Rated V-2 per UL 94
  • Wire: 3
  • Dielectric Voltage: Withstands 3000V min
  • Temperature Rise: Max 30°C temperature rise at full rated current
  • Operating Temperature: -40°C to 60°C
  • Current Limiting: Full Rated Current
  • Pole: 2
  • Grounding: Self-Grounding
  • Voltage: 125 VAC

Product Features

  • NEMA: 5-15R
  • Grade: Heavy-Duty Industrial Specification Grade
  • Brand: Decora Plus
  • Country Of Origin: Mexico
  • Feature: Smooth Face
  • Device Type: Duplex Receptacle Outlet

Mechanical Specifications

  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • NEMA: 5-15R
  • Color: White
  • Brand: Decora Plus
  • Grade: Heavy-Duty Industrial Specification Grade
  • Device Type: Duplex Receptacle Outlet
  • Termination: Back and Side Wire
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

AC Horsepower Ratings

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 3000V min
  • Temperature Rise: Max 30°C temperature rise at full rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding
  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Ground Clips: Brass-Plated
  • Flammability: Rated V-2 per UL 94
  • Face Material: PBT Polyester Blend
  • Color: White
  • Strap Material: Steel (Galvanized G60)
  • Operating Temperature: -40°C to 60°C
  • Terminal Screws: #8 Triple-Drive Brass
  • Grounding Screw: #8 Hex Head, Triple-Drive Brass
  • Line Contacts: 0.030" Phosphor Bronze
  • Body Material: PBT Polyester Blend

Categories

Overview

UPC 07847781968
GTiN 00078477819685
Warranty Length 10 yr
Size 46 H x 1.52 W x 1.14 D IN
Color White
Operating Temperature -40 C
Voltage 125 Volt
Type Outlet
Material Thermoplastic
Conductor Size 14-10 AWG
Applications Commercial
Mounting Type Wallbox, Flush
Grade Commercial
Country of Origin Mexico
Wire Size 14-10 AWG
Standard ANSI C-73,CSA C22.2 No.42,Fed Spec W-C-596,UL 498
Connection Type Back and Side Wire
Horsepower 1/2 hp
Face Material Polyester
Body Material PBT Polyester Blend
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R
Number of Phases 1 Phase
Dielectric 3000 V
Certifications CULus,NON-ANCE
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Back and Side Wired
Amperage 15 Amp
Dielectric Strength 2000 V
Blade Dimensions 33.3 mm W x 29 mm D x 103.2 mm H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 30 C
Device Type Duplex Receptacle Outlet
Sub Brand Decora Plus
