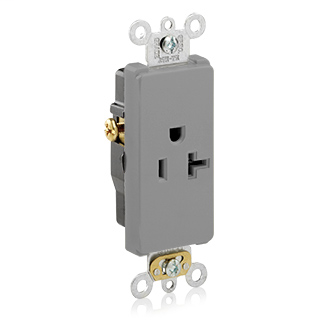

LEV 16341-GY GRAY RECEPT PKD
Product image thumbnail 0
Product image thumbnail 1
$9.04/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 16341-GY
North Coast Part # 211123

Specifications

Material Specifications

  • Ground Clips: Brass-Plated
  • Line Contacts: Brass Triple-Wipe .031 Thick
  • Face Material: Thermoplastic Nylon
  • Color: Gray
  • Strap Material: Zinc-Plated Steel
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 10-32
  • Body Material: Thermoplastic Nylon
  • Clamp Nuts: Zinc-Plated Steel

Standards and Certifications

  • Warranty: 10-Year Limited
  • ANSI: C-73
  • UL498: File E13399
  • NEMA: WD-6
  • NOM: 057

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • NEMA: 5-20R
  • Feature 4: Smooth Face
  • Color: Gray
  • Brand: Decora Plus
  • Country Of Origin: Please Contact Customer Service.
  • Grade: Commercial Specification Grade
  • Device Type: Single Receptacle Outlet

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Termination: Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Categories

Overview

UPC 07847786262
Item Long Description Levitons line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
GTiN 00078477862629
Warranty Length 10 yr
Size 46 H x 1.52 W x 1.14 D IN
Color Gray
Operating Temperature -40 C
Voltage 125 Volt
Type Single Outlet,Straight Blade
Material Thermoplastic
Applications Commercial
Mounting Type Wall Box
Grade Commercial Specification
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Side Wired
Horsepower 1 hp
Face Material Nylon
Body Material Thermoplastic Nylon
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-20R,WD-6
Number of Phases 1 Phase
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Side Wired
Amperage 20 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Single Receptacle Outlet
Sub Brand Decora Plus
