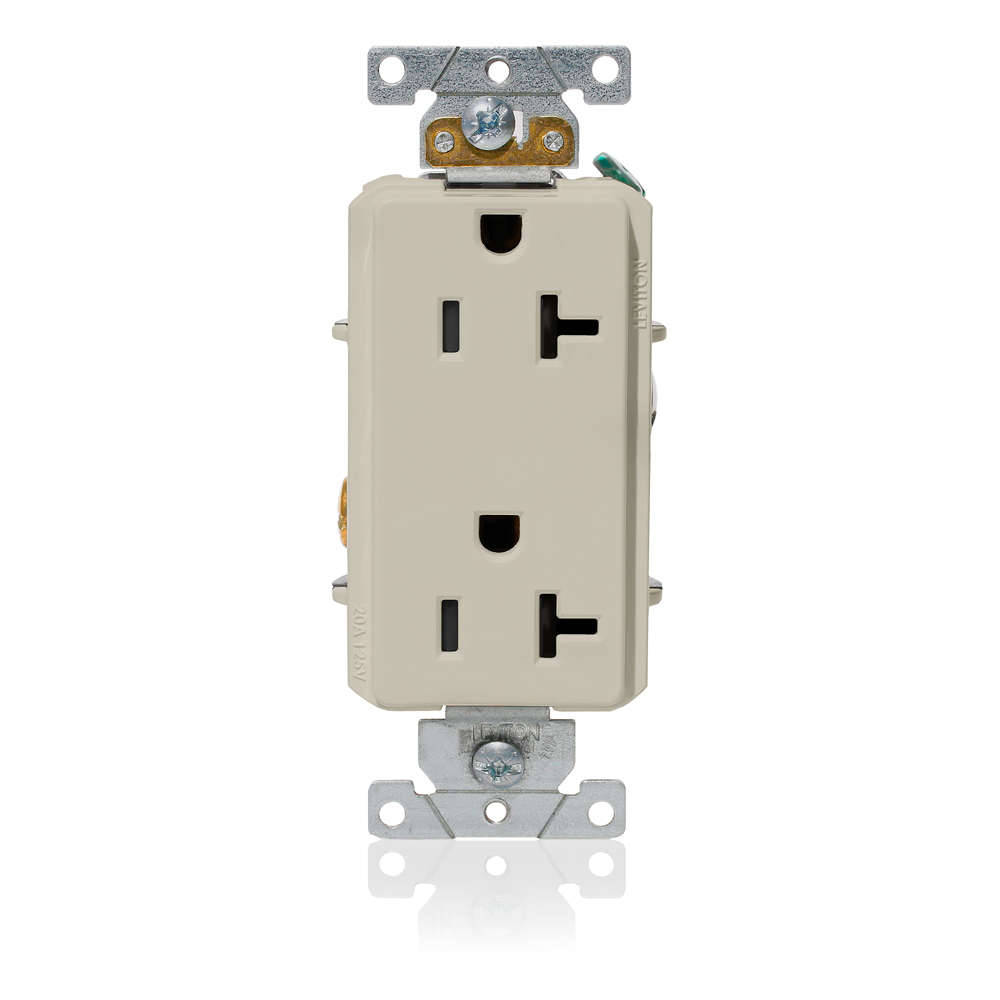

LEV 16342-T LA REC DEC DUP 2PO 3WI
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$10.46/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 16342-T
North Coast Part # 1024630

Specifications

Material Specifications

  • Ground Clips: Brass
  • Line Contacts: .030" Brass
  • Face Material: PBT Polyester Blend
  • Color: Light Almond
  • Strap Material: Steel (Galvanized G60)
  • Grounding Screw: #8 Hex Head, Triple-Drive Brass
  • Terminal Screws: #8 Triple Drive Brass
  • Body Material: PBT Polyester Blend
  • Clamp Nuts: Steel

Standards and Certifications

  • Warranty: 10-Year Limited
  • ANSI: C-73
  • NEMA: WD-1 & WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 3000V per UL498
  • Temperature Rise: Max 30C temperature rise at full rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • NEMA: 5-20R
  • Feature 4: Smooth Face
  • Color: Light Almond
  • Brand: Decora Plus
  • Country Of Origin: Mexico
  • Grade: Commercial Specification Grade
  • Device Type: Duplex Receptacle Outlet
  • Grounding: Self-Grounding

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Termination: Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847769315
Item Long Description 2P3W. 20A-125V. Decora Plus Duplex Receptacle. Commercial Spec Grade 10 Year Nema 5-20r. With-side Wired - Light Almond
GTiN 00078477693155
Warranty Length 10 yr
Color Light Almond
Operating Temperature -40 C
Voltage 125 Volt
Type Duplex Receptacle
Applications Commercial / Residential
Grade Commercial Specification
Country of Origin Mexico
Standard ANSI C-73
Horsepower 1 hp
Face Material Polyester
Body Material PBT Polyester Blend
Family Brand Name Leviton
Wire Count 3
NEMA 5-20R,WD-1,WD-6
Dielectric 3000 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 30 C
Device Type Duplex Receptacle Outlet
