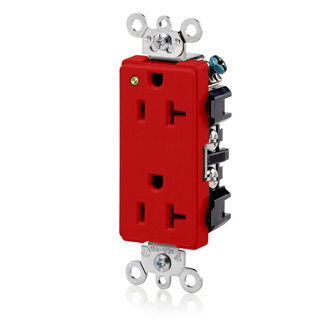

LEV 16362-PLR IND PLT. LT. REC.

Specifications

Material Specifications

• Ground Clips: Nickel-Plated Brass
• Line Contacts: Brass Triple-Wipe 0.040” Thick
• Face Material: Nylon
• Color: Red
• Strap Material: Nickel Plated Brass
• Grounding Screw: Nickel-Plated Brass 8-32
• Terminal Screws: Nickel-Plated Brass 10-32
• Body Material: Nylon
• Yoke: Nickel-Plated Brass
• Clamp Nuts: Zinc-Plated Steel

Standards and Certifications

• Warranty: 10-Year Limited
• NOM: 057
• CSA C22.2 No. 42: File 152105
• UL498HG: File E13399
• ANSI: C-73
• NEMA: WD-6

Electrical Specifications

• Amperage: 20 A
• Wire: 3
• Dielectric Voltage: Withstands 2000V per UL498
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Pole: 2
• Current Limiting: Full Rated Current
• Voltage: 125 VAC
• Grounding: Self-Grounding

Product Features

• Feature 3: Power Indication
• NEMA: 5-20R
• Feature 4: Smooth Face
• Color: Red
• Brand: Decora Plus
• Country Of Origin: Mexico
• Grade: Extra Heavy-Duty Hospital Grade
• Device Type: Duplex Receptacle Outlet
• Grounding: Self-Grounding

Mechanical Specifications

• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Product ID: Ratings are permanently marked on device
• Terminal Accom.: 14-10 AWG
• Termination: Back or Side Wire

AC Horsepower Ratings

• At Rated Voltage: 1 HP

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 60°C
