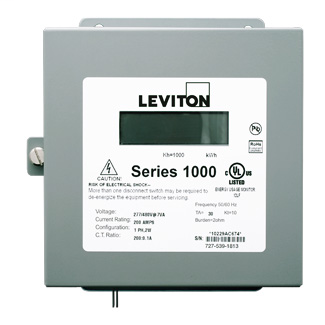

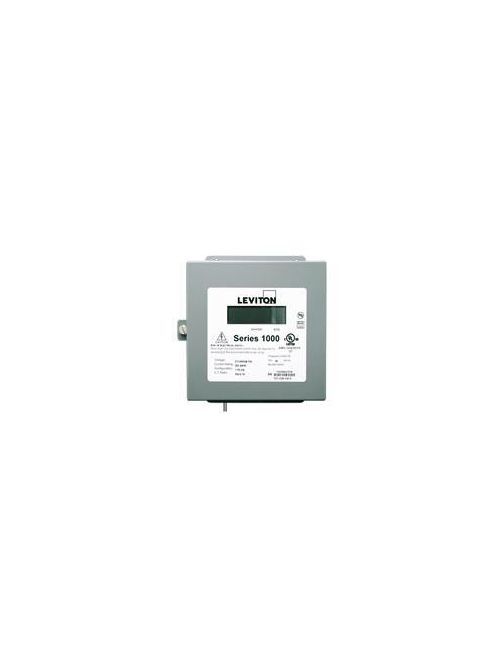

LEV 1N120-11 S1K 1P 2W 100:01A IND
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$616.92/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 1N120-11
North Coast Part # 671255

Features

  • Measures k Wh and demand (optional)
  • Conforms to all applicable standards of ANSI C12.1
  • Equipped with an Isolated Pulse Output channel
  • Utilizes revenue-grade 0.3% accuracy class 0.1A secondary solid core CTs that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs
  • Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
  • Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
  • Interfaces with numerous communication systems – Hardwired Automatic Meter Reading (AMR) or wireless AMR
  • Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset
  • Load Indicator LED verifies meter functionality
  • Reverse Phase Indicator LED illuminates if the meter is improperly installed
  • UL/cUL Listed for UL 916 Energy Monitoring Equipment
  • Five year warranty
  • 1-or 2-Phase applications, 120V, 120/240V, 277V or 277/480V
  • kWH and demand (optional)
  • Large LCD display
  • Isolated pulse output channel
  • 100A-800A services

Specifications

Electrical Specifications

  • Amperage: 100 A
  • Voltage: 120 VAC 1PH 2W

Product Features

  • Communication: Pulse Output
  • Country Of Origin: United States
  • CTs Included: No Meter Only
  • Product Line: Series 1000
  • Meter Configuration: Single Meter
  • Enclosure: Indoor (NEMA 1)

Overview

UPC 07847754511
Item Long Description Series 1000 Single Element Meter, 120 V, 1P2W, Indoor, Line-To-Neutral, 100:0.1, Gray
GTiN 00078477545119
Voltage 120 Volt
Type Indoor
Communication Type Pulse Output
Applications Commercial, Institutional, Industrial, Government
Country of Origin USA
Standard ANSI C12.1,ANSI C12.20,CULus Listed (916),UL Listed
Wattage 2 Watt
Family Brand Name Leviton
Display Type LCD
Number of Phases 1 Phase
Enclosure Type Indoor (NEMA 1)
Amperage 100 Amp
Blade Dimensions 7.5 H x 6.19 W x 3.13 D IN
Accuracy 1 PCT
Enclosure JIC Steel,Single Element,Surface Mount
