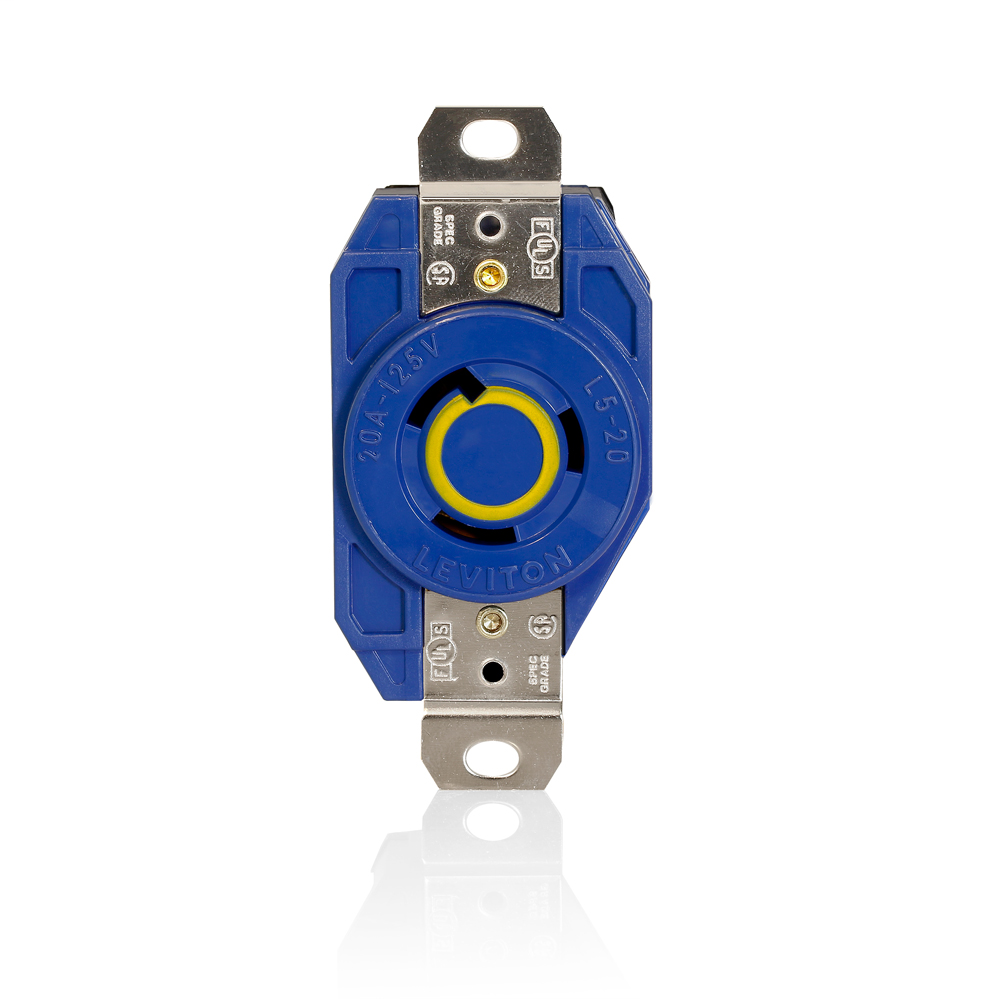

LEV 2310-BU L5-20 BLUE SINGL RECEPT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$14.36/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 2310-BU
North Coast Part # 1827531

Specifications

Material Specifications

  • Line Contacts: Brass .040 Thick
  • Face Material: Ultramid
  • Color: Blue
  • Strap Material: Nickel-Plated Brass
  • Base Material: Valox
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 10-32
  • Yoke: Nickel-Plated Brass .050 Thick

Standards and Certifications

  • Warranty: Limited Lifetime Warranty Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL498: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • RoHS: Compliant
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Grounding

Product Features

  • Color: Blue
  • Country Of Origin: Mexico
  • NEMA: L5-20R

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 14-8 AWG
  • Termination: Back & Side

AC Horsepower Ratings

  • Horsepower Rating: 1 HP

Environmental Specifications

  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847792554
Item Long Description 20 Amp, 125 Volt, NEMA L5-20R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - Blue
GTiN 00078477925546
Warranty Length Lifetime Limited
Color Blue
Operating Temperature -40 C
Type Receptacle
Applications Industrial
Country of Origin Mexico
Standard ANSI C-73
Horsepower 1 hp
Base Material Valox
Face Material Ultramid
Family Brand Name Leviton
Wire Count 3
NEMA L5-20R,WD-6
Dielectric 2000 V
Flamability Class Rated V-0 Per UL 94
Grounding Grounding
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
