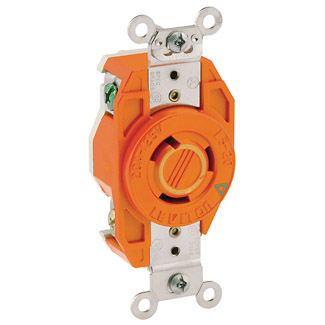

Leviton 2310-IG 125 Volt 20 Amp 2-Pole 3-Wire NEMA L5-20R 1 Hp Orange Resin 357 Flush Mount Locking Receptacle
$40.75/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 2310-IG
North Coast Part # 10763

Specifications

Material Specifications

  • Ground Clips: Nickel-Plated Brass
  • Line Contacts: Brass
  • Face Material: Valox
  • Color: Orange
  • Cover Material: Valox 357
  • Ground Contacts: Brass
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 10-32
  • Body Material: Valox 357
  • Strap Material: Nickel-Plated Brass

Warranty

  • Warranty: Lifetime Limited

Standards and Certifications

  • NOM: 057
  • NEMA: WD-1 & WD-6
  • UL: 498
  • CSA: C22.2 No. 42
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Isolated Ground

Product Features

  • Warranty: Lifetime Limited
  • Face Material: Valox
  • NEMA: L5-20R
  • Color: Orange
  • Brand: V-0-Max
  • Country Of Origin: Mexico
  • Feature: Isolated Ground

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 14-8 AWG
  • Termination: Back & Side

AC Horsepower Ratings

  • Horsepower Rating: 1 HP

Environmental Specifications

  • Environment: Corrosive
  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847780111
GTiN 00078477801116
Warranty Length Lifetime
Size 3.63 H x 1.69 W x 1.31 D IN
Color Orange
Operating Temperature 60 C
Voltage 125 Volt
Type Flush Mount Locking Receptacle
Material PBT
Applications Commercial
Mounting Type Box
Country of Origin Mexico
Wire Size 14-8 AWG
Standard ANSI C-73
Connection Type Back Wired,Side Wired
Horsepower 1 hp
Face Material Valox
Body Material Valox 357
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA WD-1,WD-6,L5-20R
Dielectric 2000 V
Environment Corrosive
Flamability Class Rated V-0 Per UL 94
Grounding Isolated Ground
TC Connection Back Wired;Side Wired
Amperage 20 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 per UL94),Flammability (Rated V-0 Per UL94)
CSA C22.2 No. 42
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Cover Material Valox 357
Sub Brand V-0-Max
