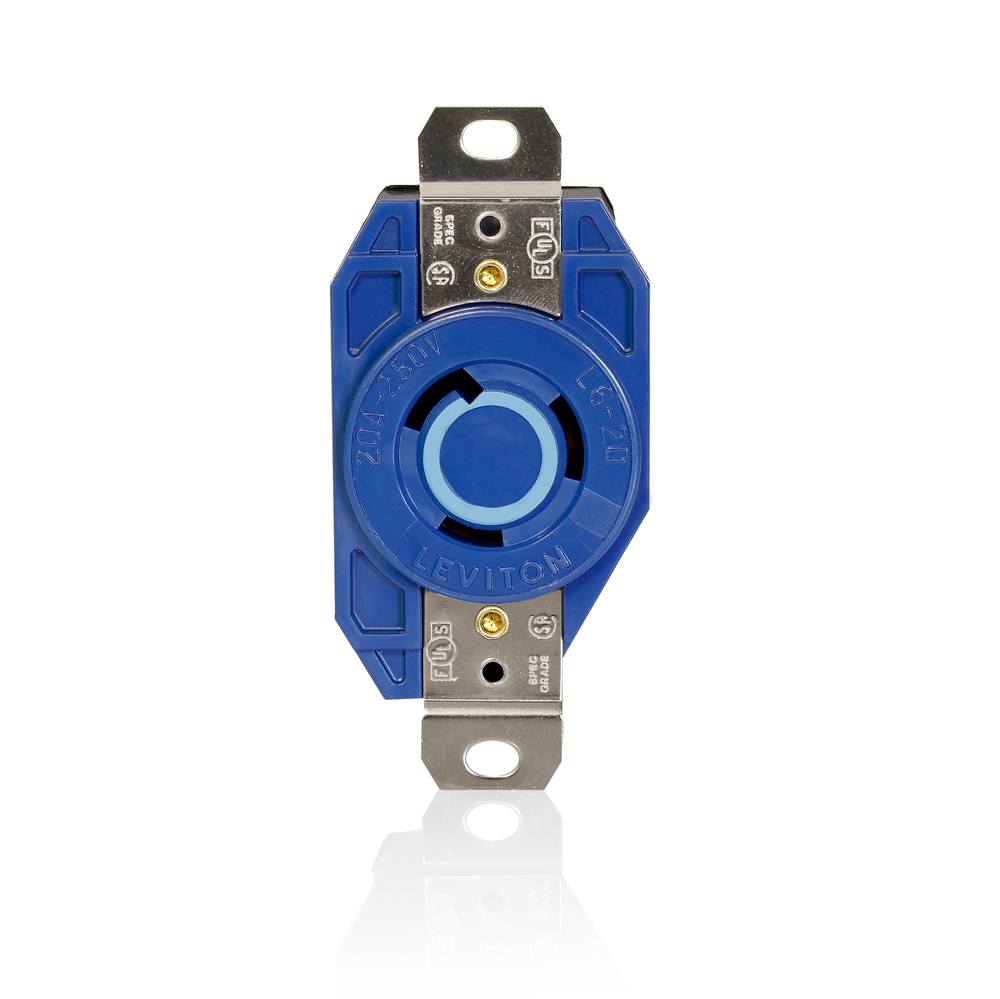

LEV 2320-BU L6-20 BLUE SINGL RECEP
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$14.52/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 2320-BU
North Coast Part # 1827536

Specifications

Material Specifications

  • Ground Clips: Nickel-Plated Brass
  • Line Contacts: Brass
  • Face Material: Valox
  • Color: Blue
  • Cover Material: Valox 357
  • Ground Contacts: Brass
  • Base Material: Valox
  • Grounding Screw: Chromated Brass
  • Terminal Screws: Chromated Brass
  • Body Material: Valox 357
  • Terminal Clamps: Zinc-Plated Brass
  • Strap Material: Nickel-Plated Brass

Warranty

  • Warranty: Limited Lifetime Warranty

Standards and Certifications

  • NOM: 057
  • NEMA: WD-1 & WD-6
  • UL: 498
  • CSA: C22.2 No. 42
  • ANSI: C-73
  • UL Fed Spec: W-C-596

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 250 VAC
  • Grounding: Isolated Ground

Product Features

  • Warranty: Limited Lifetime Warranty
  • Face Material: Valox
  • NEMA: L6-20R
  • Color: Blue
  • Country Of Origin: Mexico
  • Base Material: Valox

Mechanical Specifications

  • Terminal ID: Marked on Device
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 14-8 AWG
  • Termination: Back & Side

AC Horsepower Ratings

  • Horsepower Rating: 2 HP

Environmental Specifications

  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847792557
GTiN 00078477925577
Warranty Length Lifetime Limited
Color Blue
Operating Temperature -40 C
Type Receptacle
Applications Industrial
Country of Origin Mexico
Standard ANSI C-73
Horsepower 2 hp
Base Material Valox
Face Material Valox
Body Material Valox 357
Family Brand Name Leviton
Wire Count 3
NEMA L6-20R,WD-1,WD-6
Dielectric 2000 V
Flamability Class Rated V-0 Per UL 94
Grounding Isolated Ground
Amperage 20 Amp
CSA C22.2 No. 42
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Cover Material Valox
