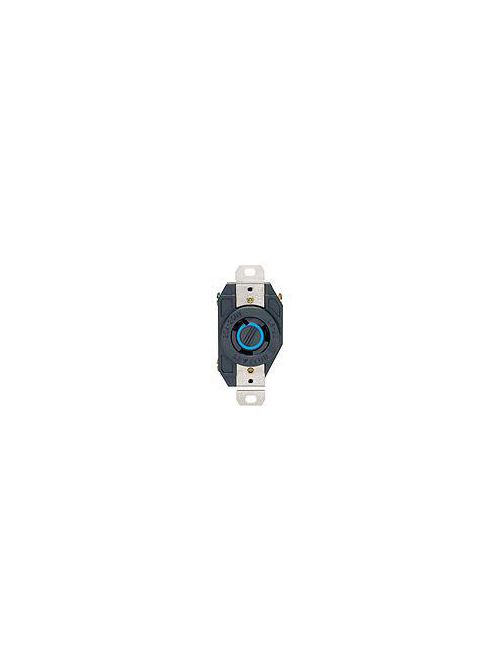

Leviton 2320 250 Volt 20 Amp 2-Pole 3-Wire NEMA L6-20R 2 Hp Black Nylon Grounding Flush Mount Locking Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$22.58/ea
In Stock | 119 available at 12 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 2320
North Coast Part # 210753

Specifications

Material Specifications

  • Line Contacts: Brass
  • Face Material: Ultramid
  • Color: Black
  • Cover Material: Valox 357
  • Ground Contacts: Brass
  • Base Material: Valox
  • Grounding Screw: Chromated Brass
  • Terminal Screws: Chromated Brass
  • Body Material: Nylon
  • Strap Material: Nickel-Plated Brass

Warranty

  • Warranty: Lifetime Limited

Standards and Certifications

  • NOM: 057
  • NEMA: WD-1 & WD-6
  • UL: 498
  • CSA: C22.2 No. 42
  • ANSI: C-73
  • UL Fed Spec: W-C-596

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 250 VAC
  • Grounding: Grounding

Product Features

  • Warranty: Lifetime Limited
  • Face Material: Ultramid
  • NEMA: L6-20R
  • Color: Black
  • Country Of Origin: Please Contact Customer Service.
  • Base Material: Valox

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Cord Range: 0.385 to 0.780
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 14-8 AWG
  • Termination: Back & Side

AC Horsepower Ratings

  • Horsepower Rating: 2 HP
  • At Rated Voltage: 2 HP

Environmental Specifications

  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -40°C to 60°C

Categories

Overview

UPC 07847780120
Item Long Description 20 Amp, 250 Volt, Flush Mounting Locking Receptacle, Grounding, Industrial Grade, V-0-MAX, Black
GTiN 00078477801208
Warranty Length Lifetime
Size 3.63 H x 1.69 W x 1.31 D IN
Color Black
Operating Temperature -40 C
Voltage 250 Volt
Type Flush Mount Locking Receptacle
Material PBT
Conductor Size 14-8 AWG
Applications Commercial
Mounting Type Box, Recessed/Flush
Grade Commercial
Wire Size 14-8 AWG
Standard ANSI C-73
Connection Type Back and Side Wire
Horsepower 2 hp
Base Material Valox
Face Material Ultramid
Body Material Nylon
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA L6-20R,WD-1,WD-6
Dielectric 2000 V
Flamability Class Rated V-0 Per UL 94
Grounding Grounding
TC Connection Back Wired;Side Wired
Amperage 20 Amp
Dielectric Strength 2000 V
Blade Dimensions 1.69 in W x 1.31 in D x 3.63 in H
Environmental Conditions UL 94 Requirements, V0 and V2 Rated Flammability
CSA C22.2 No. 42
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Cover Material Valox
Sub Brand V-0-Max
