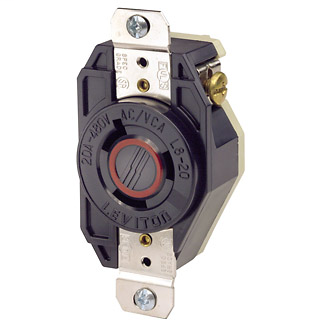

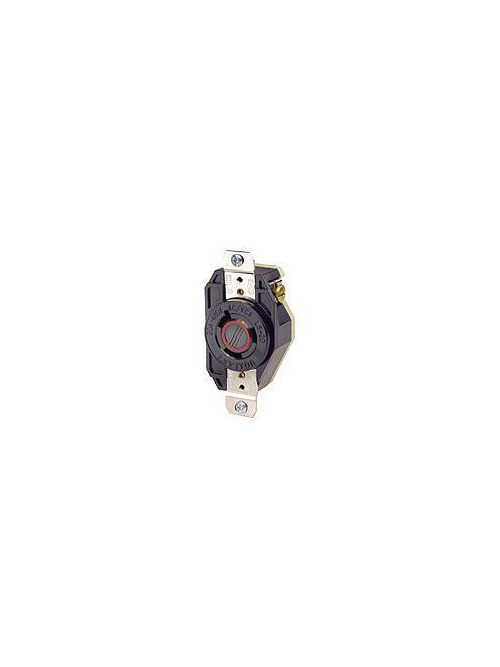

Leviton 2340 20 Amp, 480 Volt, NEMA L8-20R, 2-Pole 3 Wire Flush Mounting Locking Receptacle Industrial Grade Grounding Black
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$39.93/ea
In Stock | 10 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 2340
North Coast Part # 210951

Specifications

Material Specifications

  • Line Contacts: Brass
  • Face Material: Ultramid
  • Color: Black
  • Cover Material: Valox 357
  • Ground Contacts: Brass
  • Base Material: Valox
  • Grounding Screw: Chromated Brass
  • Terminal Screws: Chromated Brass
  • Body Material: Nylon
  • Terminal Clamps: Nickel-Plated Brass
  • Strap Material: Nickel-Plated Brass

Warranty

  • Warranty: Lifetime Limited

Standards and Certifications

  • NOM: 057
  • NEMA: WD-1 & WD-6
  • UL: 498
  • CSA: C22.2 No. 42
  • ANSI: C-73
  • UL Fed Spec: W-C-596

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 480 VAC
  • Grounding: Grounding

Product Features

  • Warranty: Lifetime Limited
  • Face Material: Ultramid
  • NEMA: L8-20R
  • Color: Black
  • Country Of Origin: Mexico
  • Base Material: Valox

Mechanical Specifications

  • Terminal ID: Marked on Device
  • Cord Range: 0.595 to 0.895
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 14-8 AWG
  • Termination: Back & Side

AC Horsepower Ratings

  • At Rated Voltage: 3 HP

Environmental Specifications

  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -40°C to 60°C

Categories

Overview

GTiN 00078477044940
Warranty Length Lifetime
Size 3.63 H x 1.69 W x 1.31 D IN
Color Black
Operating Temperature -40 C
Voltage 480 Volt
Type Flush Mount Locking Receptacle
Material PBT
Applications Industrial
Mounting Type Box
Country of Origin Mexico
Wire Size 14-8 AWG
Standard ANSI C-73
Connection Type Back Wired,Side Wired
Horsepower 3 hp
Base Material Valox
Face Material Ultramid
Body Material Nylon
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA L8-20R,WD-1,WD-6
Dielectric 2000 V
Flamability Class Rated V-0 Per UL 94
Grounding Grounding
TC Connection Back Wired;Side Wired
Amperage 20 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 per UL94)
CSA C22.2 No. 42
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Cover Material Valox
Sub Brand V-0-Max
Product UPC 07847704494
