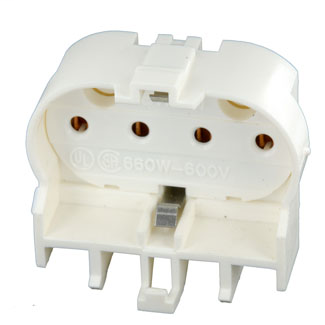

LEV 23454 WH COMPACT FLUOR FOR 2G11
$14.71/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 23454
North Coast Part # 665411

Specifications

Mechanical Specifications

  • Mounting Orientation: Horizontal
  • Mounting Type: Snap-In
  • Color: White
  • Body Material: Thermoplastic
  • Panel Thickness: .023 - .039
  • Wire Strip Length: 3/8 Inch
  • Contact Type: Straight-In Double Edge
  • Termination: Quickwire 18AWG Solid or Str. Tinned
  • Availability: Distribution
  • Contact Material: Copper-Alloy

Standards and Certifications

  • NOM Certified: 057
  • CSA Certified: File LR-1863
  • UL Listed: File E5833

Product Features

  • Warranty: 1 Year Limited
  • Mounting Orientation: Horizontal
  • Mounting Type: Snap-In
  • Light Type: Fluorescent
  • Standards and Certifications: UL/CSA/NOM
  • Country Of Origin: Mexico
  • Feature: Internal Shunt
  • Lamp Base: 2G11
  • Lamp Contacts: 4-Pin
  • Panel Thickness: .023 - .039
  • Voltage: 600 Volt
  • Contact Type: Straight-In Double Edge
  • Termination: Quickwire 18AWG Solid or Str. Tinned
  • Lamp Type: Twin Tube Fluorescent
  • Availability: Distribution
  • Lampholder Type: Compact

Overview

UPC 07847711397
GTiN 00078477113974
Length 1.90 in
Warranty Length 1 yr
Color White
Voltage 600 Volt
Type Twin Tube, Horizontal, Shunted
Applications For Commercial use
Mounting Type Snap-In
Country of Origin Mexico
Bulb Type Fluorescent
Standard CSA,NOM,UL
Wattage 660 Watt
Body Material Thermoplastic
Base 2G11
Family Brand Name Leviton
Lamp Type Fluorescent
Light Type Fluorescent
Contact Material Copper-Alloy
CSA LR-1863
Blade Dimensions 1.9 in L
