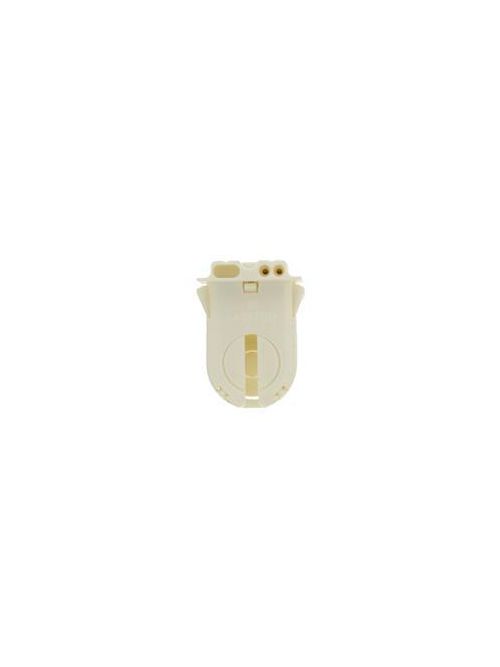

LEV 23653-WNP FLUORESCENT LAMPHOLDE
Product image thumbnail 0
Product image thumbnail 1
$9.98/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 23653-WNP
North Coast Part # 598429

Specifications

Mechanical Specifications

  • Mounting Type: Snap-In or Slide-On
  • Color: White
  • Body Material: Thermoplastic
  • Panel Thickness: 22-25 Ga. Panel
  • Wire Strip Length: 3/8 Inch
  • Contact Type: Lamp-Lock
  • Termination: Quickwire 18AWG Solid
  • Availability: Distribution
  • Contact Material: Copper-Alloy

Standards and Certifications

  • NOM Certified: 057
  • CSA Certified: File LR-1863
  • VDE: Certified to IEC
  • UL Listed: File E5833

Product Features

  • Warranty: 1 Year Limited
  • Voltage: 600 Volt
  • Mounting Type: Snap-In or Slide-On
  • Light Type: Fluorescent
  • Color: White
  • Standards and Certifications: UL/CSA/NOM
  • Country Of Origin: Mexico
  • Feature: Internal Shunt
  • Lamp Base: Medium
  • Lamp Contacts: Bi-Pin
  • Panel Thickness: 22-25 Ga. Panel
  • Style Name: Low Profile
  • Contact Type: Lamp-Lock
  • Termination: Quickwire 18AWG Solid
  • Lamp Type: T8 - T12
  • Availability: Distribution
  • Rated Wattage: 660W
  • Lampholder Type: Linear

Categories

Overview

UPC 07847718252
GTiN 00078477182529
Warranty Length 1 yr
Color White
Voltage 600 Volt
Type Shunted
Applications Commercial
Mounting Type Slide-On,Snap-In
Country of Origin Mexico
Style Low Profile
Bulb Type Fluorescent
Standard CSA,NOM,UL
Wattage 660 Watt
Body Material Thermoplastic
Base Medium
Family Brand Name Leviton
Lamp Type T8 Fluorescent
Light Type Fluorescent
Contact Material Copper-Alloy
CSA LR-1863
