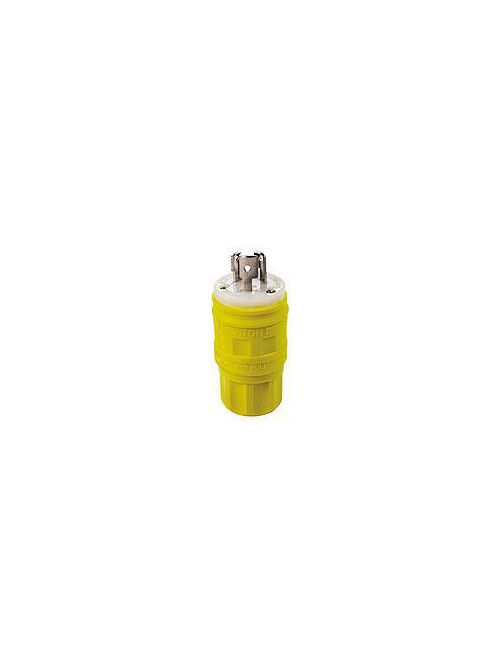

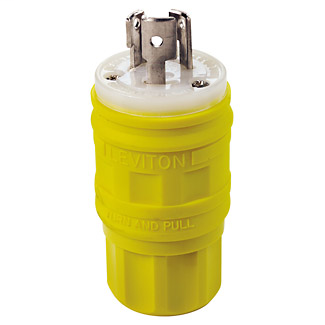

Leviton 24W49 250 Volt 15 Amp 2-Pole 3-Wire NEMA L6-15P Yellow Thermoplastic Vulcanizate Non-Grounding Polarized Locking Plug
$41.20/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 24W49
North Coast Part # 268662

Specifications

Material Specifications

  • Body Interior: Nylon
  • Wire Module: Nylon
  • Terminal Screws: Electroless Nickel-coated Brass
  • Blades/Contacts: Nickel-Plated Brass
  • Bushing: Santoprene TPV
  • Compression Nut, Strain Relief: Nylon
  • Body Material: EPTR Rubber
  • Assembly Screws: Stainless Steel 300

Standards and Certifications

  • Warranty: Limited Lifetime Warranty Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL: 498
  • ANSI: C-73
  • NEMA: WD-6

Product Features

  • NEMA: L6-15P
  • Color: Yellow
  • Country Of Origin: United States
  • Brand: Wetguard
  • Blades/Contacts: Nickel-Plated Brass
  • Device Type: Locking Plug
  • Body Material: EPTR Rubber
  • Assembly Screws: Stainless Steel 300
  • Standards and Certifications: UL/CSA

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Cord Grip Range (in): .234-.687
  • Terminal Accom.: 18-10 AWG

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 250 VAC
  • Grounding: Grounding

Environmental Specifications

  • Environment: Wet
  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C
  • IP Rating: IP66, IP67, IP69K

videos

Overview

UPC 07847796947
GTiN 00078477969472
Warranty Length Lifetime Limited
Size 1.50 Diameter X 2.71 L IN
Color Yellow
Operating Temperature -40 C
Voltage 250 Volt
Type Locking,Watertight Plug
Material TPV
Cord Type SOW,S,SO,ST
Applications Industrial
Mounting Type Cable
Country of Origin United States
Wire Size 18-10 AWG
Standard UL,CSA,ANSI C-73
Connection Type Screw Terminal
Blade Type Nickel-Plated Brass
Body Material EPTR Rubber
Family Brand Name Leviton
Wire Count 3
NEMA L6-15P,WD-6
Number of Phases 1
Dielectric 2000 V
Environment Wet
Flamability Class Rated V-2 Per UL 94
Grounding Grounding
TC Connection Screw Terminal
Actuator Stainless Steel 300
Amperage 15 Amp
IP Rating IP69K,IP67,IP66
Environmental Conditions Operating Temperature Range (-40 To 60) C
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Locking Plug
Sub Brand Wetguard
