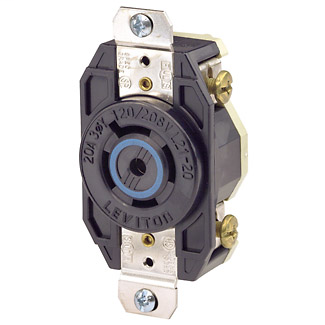

Leviton 2510 20 Amp 120/208 Volt NEMA L21-20R 4-Pole 5 Wire Flush Mounting Industrial Grade Grounding Black Locking Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$59.27/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 2510
North Coast Part # 212963

Specifications

Material Specifications

  • Line Contacts: Brass
  • Face Material: Nylon
  • Color: Black
  • Cover Material: Valox 357
  • Ground Contacts: Brass
  • Base Material: Nylon
  • Grounding Screw: Chromated Brass
  • Terminal Screws: Chromated Brass
  • Body Material: Nylon
  • Terminal Clamps: Nickel-Plated Brass
  • Clamp Nuts: Nickel-Plated Brass
  • Strap Material: Nickel-Plated Brass

Warranty

  • Warranty: Lifetime Limited

Standards and Certifications

  • NOM: 057
  • NEMA: WD-1 & WD-6
  • UL: 498
  • CSA: C22.2 No. 42
  • ANSI: C-73
  • UL Fed Spec: W-C-596

Electrical Specifications

  • Amperage: 20 A
  • Wire: 5
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 4
  • Current Limiting: Full Rated Current
  • Voltage: 120/208 VAC
  • Grounding: Grounding
  • Phase: 3-Phase WYE

Product Features

  • Warranty: Lifetime Limited
  • Face Material: Nylon
  • NEMA: L21-20R
  • Color: Black
  • Brand: V-0-Max
  • Country Of Origin: Mexico
  • Base Material: Nylon
  • Device Type: Locking Receptacle
  • Voltage: 120/208 VAC

Mechanical Specifications

  • Terminal ID: Marked on Device
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 14-8 AWG
  • Termination: Back & Side

AC Horsepower Ratings

  • At Rated Voltage: 2 HP

Environmental Specifications

  • Environment: Corrosive
  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -40°C to 60°C

Categories

Overview

UPC 07847707720
Item Long Description 20 Amp, 120/208 Volt- 3PY, Flush Mounting Locking Receptacle, Industrial Grade, Grounding, V-0-Max, Black
GTiN 00078477077207
Warranty Length Lifetime
Size 3.63 H x 1.69 W x 1.31 D IN
Color Black
Operating Temperature -40 C
Voltage 120 Volt
Type Flush Mount Locking Receptacle
Material PBT
Conductor Size 14 - 8 AWG
Applications Commercial
Mounting Type Box, Flush
Country of Origin Mexico
Wire Size 14-8 AWG
Standard ANSI C-73
Connection Type Back and Side Wired
Horsepower 2 hp
Base Material Nylon
Face Material Nylon
Body Material Nylon
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 5
NEMA L21-20R,WD-1,WD-6
Number of Phases 3 Phase
Dielectric 2000 V
Environment Corrosive
Flamability Class Rated V-0 Per UL 94
Grounding Grounding
TC Connection Back Wired;Side Wired
Amperage 20 Amp
Dielectric Strength 2000 V
Blade Dimensions 1.69 in W x 1.31 in D x 3.63 in H
Environmental Conditions Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 Per UL94)
CSA C22.2 No. 42
Number of Poles 4 Pole
Number of Wires 5
Temperature Rise 200 %
Device Type Locking Receptacle
Cover Material Valox
Sub Brand V-0-Max
